Alco C415Production Roster |
| ||
|---|---|---|---|

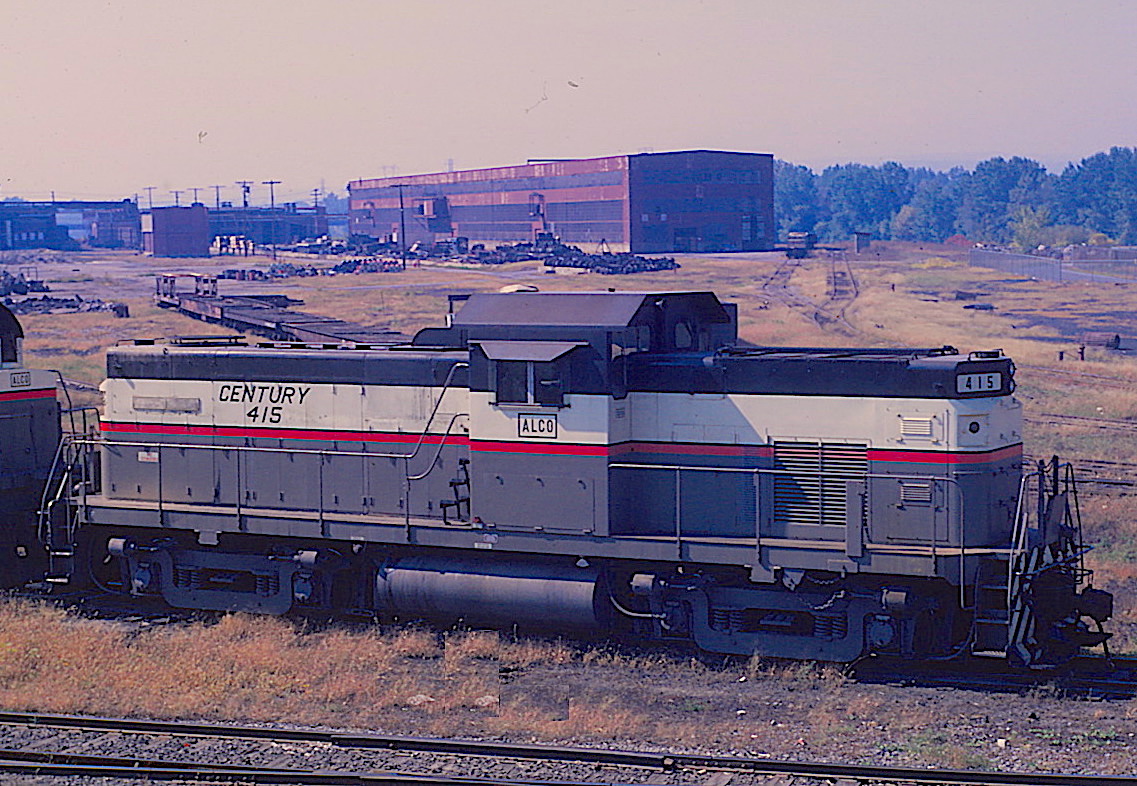

| New Format: 6 February 2021 | Ray Sabo photo (R. Craig Collection) | ||
| Reporting Mark: Alco | Roster by: R. Craig | ||
| Original owner | Road Numbers | Bldr Numbers | Bldr Dates |
| Alco (Demo) | 415 | 3449-01 | 4/66 |
| Chehalis Western | 684 | 6003-01 | 7/68 |
| Columbia & Cowlitz | 701 | 6018-01 | 11/68 |
| Monongahela Connecting | 701 | 6005-01 | 7/68 |
| Rock Island | 415-424 | 3451-01 to -10 | 9-10/66 |
| Spokane Portland & Seattle | 100-101 | 6009-01 to 02 | 11-12/68 |
| Southern Pacific | 2400-2409 | 3458-01 to -10 | 12/66 |
Source of information: Extra 2200 South, with correction from John Gadow. | |||
| - | |||
| Technical Data |  | ||
| Drawing and Data Sheet by: JEAN-DENIS BACHAND | |||
| Engine Builder: Alco and Dominion Engineering Works | Engine: 4-cycle Model 251F V8 | ||
| Bore & Stroke | 9" X 10.5" | ||
| RPM (Maximum / Minimum) | 1025 / 375 | ||
| Main Generator: GE - GT581 | 1500 | ||
| Gear Ratio: 74:18 | Speed: 66 mph | ||
| 4-Wheel | Configuration: B-B | ||
| Traction Motor Blowers: Mechanical Driven (2) | Model: Stuart | ||
| Weight: 240,000 lbs | Traction Motors: GE 752 (Four) | ||
| Tractive Effort (starting) 60,000 lbs @ 25% | Tractive Effort (continuous): 42,000 lbs @ 10 mph | ||
| Multiple Unit Capability: Yes | Dynamic Braking: No | ||
| Auxilary Generator: GE | Alternator: | ||
| Air Brake: Westinghouse | Model: 26L | ||
| Compressor: Westinghouse | Model: 3CDC | ||
| Boiler Type: Optional | Lbs/hr: -- | ||
| Quantity Built: 26 | Dates: 6/1966 to 12/1968 | ||
| - | - | ||
| Exterior Dimensions | C-415 | ||
| Total Length | 53'-08" | ||
| Pilot to Pilot | 44'-01" | ||
| Wheel Diameter | 40" | ||
| Truck Wheel Base | 9'-04" | ||
| Height to Top Engine Hood | 12'-09" | ||
| Height to Top Cab Hood | 15'-05" (std), 14'-06" (low), 16'-05" (high) | ||
| Cab Width | 10'-03" | ||
| Top Walkway Width | 11'-10" | ||
| Walkway Width | 5'-01" | ||
| Engine Hood Width | 10'-02" | ||
| Center Bolster | 31'-00" | ||
| Center Front Truck to Front Pilot | 8'-01" | ||
| Center Rear Tucrk to Rear Pilot | 8'-01" | ||
| Distance between Truck Centers | 37'-04" | ||
| Minimum Turning Radious | 21 degrees | ||
| - | - | ||
| Fuel Oil: 1000 | Lubricating Oil: 180 | ||
| Engine Cooling Water: 150 | Sand Capacity: 26 cu. ft. | ||
| - | |||
 |
Drawing by: Jean-Denis Bachand | ||
