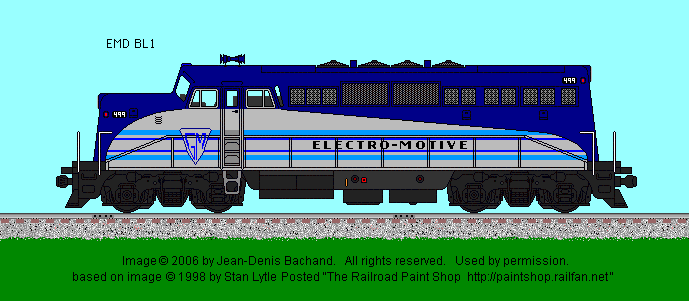

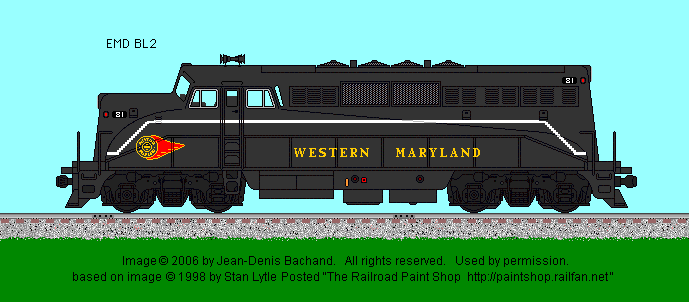

EMD BL1and BL2 |
 |
| Data Sheet Information Compiled by: JEAN-DENIS BACHAND |
| New: 6 May 2006 |
Artwork by: Jean-Denis Bachand |
| - |
| Engine Builder: EMD |
Engine: 567B 16 cylinder |
| Bore & Stroke |
8.5" X 10" |
| RPM (Maximum / Minimum) |
800 / 275 |
| Main Generator: GM - D12 |
Horsepower: 1500 |
| Gear Ratio: 62:15 |
Speed: 65 mph |
| Trucks: 4-Wheel |
Configuration: B-B |
| Traction Motor Blowers: Delco Electric Drive (4) |
Model: GM |
| Weight: 230,000 lbs |
Traction Motors: Four GM - D27B |
| Tractive Effort (starting) 55,000 lbs @25% |
Tractive Effort (continuous): 40,000 lbs @ 9.3 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: Delco A8102 |
Alternator: GM D14 |
| Air Brake: Westinghouse |
Model: 24L |
| Compressor: Gardner-Denver |
Model: WBO |
| Quantity Built: 58 BL2s (and one BL1)
|
Dates: 4/48 to 5/49 (and 2/48 for BL1) |
| - |
- |
| Exterior Dimensions
| BL1 and BL2 |
| Total Length |
54'-00" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
9'-00" |
| Height to Top Engine Hood |
14'-06" |
| Height to Top Cab |
15'-00" |
| Cab Width |
10'-07.5" |
| Engine Hood Width |
10'-00" |
| Center Bolster |
35'-00" |
| Center Front Truck to Front Pilot |
2'-03" |
| Center Rear Tucrk to Rear Pilot |
2'-03" |
| Distance between Truck Centers |
44'-00" |
| Minimum Turning Radious |
30 degrees |
| -
| - |
| Fuel Oil: 800
| Lubricating Oil: 200 |
| Engine Cooling Water: 230
| Sand Capacity: 16 cu. ft. |
| Options: Vapor Clarkson Boiler #4625 |
| - |
 |
| Artwork by: Jean-Denis Bachand |
| - |
