EMD SD18

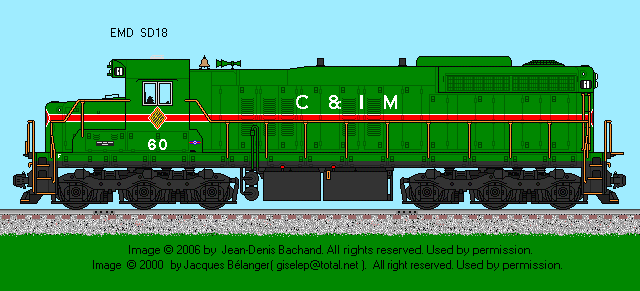

Somebody's Large Digital Image Here
Data Sheet Information Compiled by: JEAN-DENIS BACHAND
Revised: 11 Feb. 2014  Artwork by: Jean-Denis Bachand
-
Engine Builder: EMD Engine: 567D1 16 cylinder
Bore & Stroke 8.5" X 10"
RPM (Maximum / Minimum) 835 / 275
Main Generator: GM - D22 Horsepower: 1800
Gear Ratio: 62:15 Speed: 65 mph
Trucks: 6-Wheel Configuration: C-C
Traction Motor Blowers: Electrical Drive (4) Model: Delco
Weight: 390,000 lbs Traction Motors: Six GM - D47
Tractive Effort (starting) 97,500 lbs @25% Tractive Effort (continuous): 67,500 lbs @ 9.3 mph
Multiple Unit Capability: Yes Dynamic Braking: Yes
Auxilary Generator: Delco A8102 Alternator: GMD14
Air Brake: Westinghouse Model: 24RL
Compressor: Gardner-Denver Model: WBO
Quantity Built: 54 Dates: 4/1960 to 3/1963
- -
Exterior Dimensions SD18
Total Length 60'-08"
Wheel Diameter 40"
Truck Wheel Base 13'-07"
Height to Top Engine Hood 13'-10.5"
Height to Top Cab 15'-00"
Cab Width 10'-00"
Top of Walkway 4'-08.5"
Engine Hood Width 7'-00"
Distance between Truck Centers 35'-00"
Wheel Base (locomotive) 48'-07.5"
Minimum Turning Radious 57 degrees
- -
Fuel Oil: 2400 Lubricating Oil: 220
Engine Cooling Water: 258 Sand Capacity: 18 cu. ft.
Options: Vapor-Clarkson Steam Boiler OK4625
-
