EMD SD24 (and SD24B) |
 |
| Data Sheet Information Compiled by: JEAN-DENIS BACHAND |
| Revised: 11 Feb. 2014 |

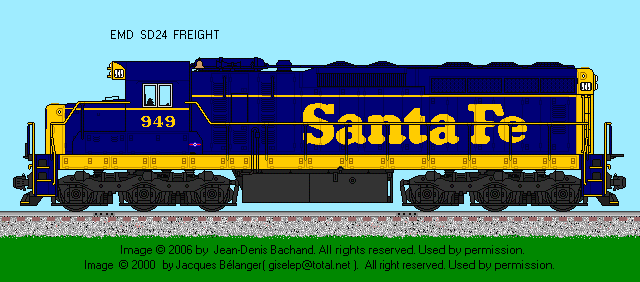

Artwork by: Jean-Denis Bachand |
| - |
| Engine Builder: EMD |
Engine: 567D3 16 cylinder |
| Bore & Stroke |
8.5" X 10" |
| RPM (Maximum / Minimum) |
800 / 275 |
| Main Generator: GM - D22 |
Horsepower: 2400 |
| Gear Ratio: 62:15 |
Speed: 65 mph |
| Trucks: 6-Wheel |
Configuration: C-C |
| Traction Motor Blowers: Electrical Drive (4) |
Model: Delco |
| Weight: 390,000 lbs |
Traction Motors: Six GM - D47 |
| Tractive Effort (starting) 97,500 lbs @25% |
Tractive Effort (continuous): 72,300 lbs @ 9.3 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: Delco A8102 |
Alternator: GMD14 |
| Air Brake: Westinghouse |
Model: 26L |
| Compressor: Gardner-Denver |
Model: WBO |
| Quantity Built: 179 (and 45 B-units)
|
Dates: 7/58 to 3/63 (and 7/58 to 9/59 for B-units) |
| - |
- |
| Exterior Dimensions
| SD18 |
| Total Length |
60'-08" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
13'-07" |
| Height to Top Engine Hood |
14'-03" |
| Height to Top Cab |
15'-00" |
| Cab Width |
10'-00" |
| Top of Walkway |
4'-08.5" |
| Engine Hood Width |
7'-00" |
| Distance between Truck Centers |
35'-00" |
| Wheel Base (locomotive) |
48'-07.5" |
| Minimum Turning Radious |
57 degrees |
| -
| - |
| Fuel Oil: 2400
| Lubricating Oil: 220 |
| Engine Cooling Water: 260
| Sand Capacity: 46 cu. ft. |
| Options: Vapor-Clarkson Steam Boiler OK4625 |
| - |
 |

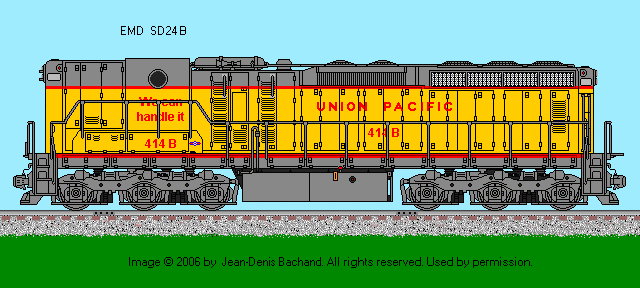

| Artwork by: JEAN-DENIS BACHAND |
Reference Sources:
- Diesel Locomtoives, Vol.2, by Bob Hayden
- Illustrated Treasury of GM Locomotives, by James W. Kerr
- Diesel Locomotives, The First 50 Years by Louis A. Marre
- The Second Diesel Spotter's Guide, by Jerry A. Pinkepank
- "Early Diesel and Electric Locomotives," Rail Heritage Publications
- Diesel & Electric Locomotive Specificiations, 1981 by F.K. Hudson
- Train Shed Cyclopedia, Vol. 20, 58, 60, 64, 80
|
