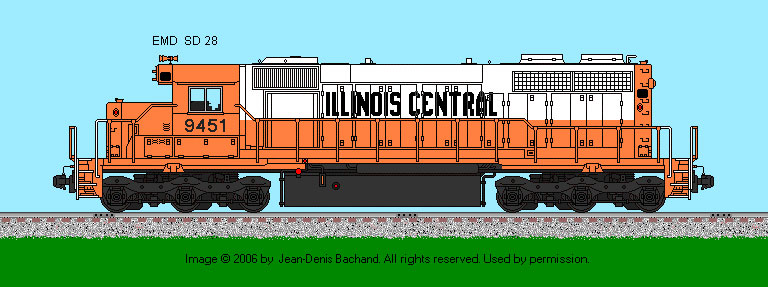

EMD SD28 |
 |
| Data Sheet Information Compiled by: JEAN-DENIS BACHAND |
| New: 29 August 2006 |
Artwork by: Jean-Denis Bachand |
| - |
| Engine Builder: EMD |
Engine: 567D1 16 cylinder |
| Bore & Stroke |
8.5" X 10" |
| RPM (Maximum / Minimum) |
800 / 275 |
| Main Generator: GM - D32 |
Horsepower: 1800 |
| Gear Ratio: 59:15 |
Speed: 95 mph |
| Trucks: 6-Wheel |
Configuration: C-C |
| Traction Motor Blowers: Electrical Drive (4) |
Model: Delco |
| Weight: 390,000 lbs |
Traction Motors: Six GM - D57 |
| Tractive Effort (starting) 97,000 lbs @25% |
Tractive Effort (continuous): 77,300 lbs @ 9.3 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: Delco A8102 |
Alternator: GMD14 |
| Air Brake: Westinghouse |
Model: 24L |
| Compressor: Gardner-Denver |
Model: WBO |
| Quantity Built: 6
|
Dates: 7/1965 to 9/1965 |
| - |
- |
| Exterior Dimensions
| SD28 |
| Total Length |
60'-08" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
13'-07" |
| Height to Top Engine Hood |
15'-01" |
| Height to Top Cab |
15'-07.5" |
| Cab Width |
10'-04" |
| Top of Walkway |
8'-09.5" |
| Walkway Width |
3'-08.5" |
| Engine Hood Width |
10'-02" |
| Center Bolster |
35'-00" |
| Center Front Truck to Front Pilot |
3'-09" |
| Center Rear Truck to Rear Pilot |
3'-09" |
| Distance between Truck Centers |
48'-07" |
| Minimum Turning Radious |
57 degrees |
| -
| - |
| Fuel Oil: 1200
| Lubricating Oil: 220 |
| Engine Cooling Water: 260
| Sand Capacity: 18 cu. ft. |
