EMD SD60 / GMDD SD60F

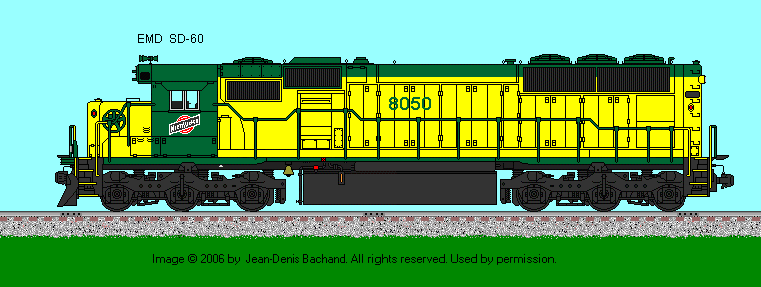

Somebody's Large Digital Image Here
Data Sheet Information Compiled by: Jean-Denis Bachand
New: 21 Aug. 2016 Artwork by: Jean-Denis Bachand
-
Engine Builder: EMD Engine: 710G 16 cylinder
Bore & Stroke 9.02" X 10"
RPM (Maximum / Minimum) 904 / 318
Main Generator: AR11A Horsepower: 3800
Gear Ratio: 77:17 Speed: 70 mph
Trucks: HTC 6-Wheel Configuration: C-C
Traction Motor Blowers: Electrical Drive (4) Model: Delco
Weight: 368,000 lbs Traction Motors: Six D87B
Tractive Effort (starting) 98,250 lbs @25% Tractive Effort (continuous): 100,000 lbs @ 9.8 mph
Multiple Unit Capability: Yes Dynamic Braking: Yes
Auxilary Generator: Delco A8102 Alternator: GMD18
Air Brake: Westinghouse Model: 26L
Compressor: Gardner-Denver Model: WBO
Quantity Built: 369 (includes 4 CN SD60F) Dates: 5/1984 to 9/1995
-
Exterior Dimensions SD50
Total Length 71'-02"
Wheel Diameter 40"
Truck Wheel Base 13'-07"
Height to Top Engine Hood 14'-07.5"
Height to Top Cab 15'-07.5"
Cab Width 10'-03"
Top of Walkway 9'-04.5"
Walkway Width 3'-08.5"
Engine Hood Width 10'-00"
Center Bolster 45'-10"
Center Front Truck to Front Pilot 2'-03"
Center Rear Truck to Rear Pilot 2'-03"
Distance between Truck Centers 59'-05.5"
Minimum Turning Radious 29 degrees
- -
Fuel Oil: 4400 Lubricating Oil: 283
Engine Cooling Water: 250 Sand Capacity: 56 cu. ft.
Options:
-

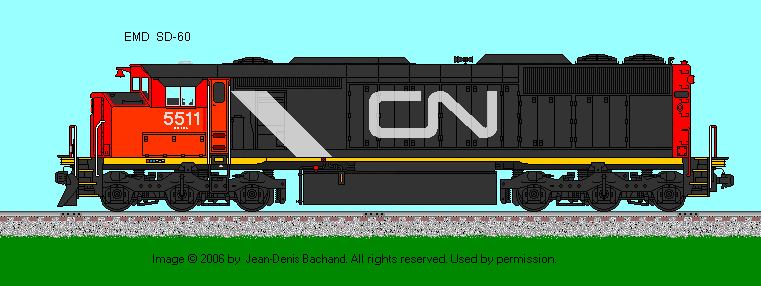

Somebody's Large Digital Image Here
Artwork by Jean-Denis Bachand
We thank the following contributors for additions and corrections: Timothy Bryan.

Reference Sources:

  • Diesel Locomtoives, Vol.2, by Bob Hayden
  • Illustrated Treasury of GM Locomotives, by James W. Kerr
  • Diesel Locomotives, The First 50 Years by Louis A. Marre
  • The Second Diesel Spotter's Guide, by Jerry A. Pinkepank
  • "Early Diesel and Electric Locomotives," Rail Heritage Publications
  • Diesel & Electric Locomotive Specificiations, 1981 by F.K. Hudson
  • Train Shed Cyclopedia, Vol. 20, 58, 60, 64, 80
