Motive Power Industries MK1200G

Somebody's Large Digital Image Here
Data Sheet Information Compiled by: Jean-Denis Bachand

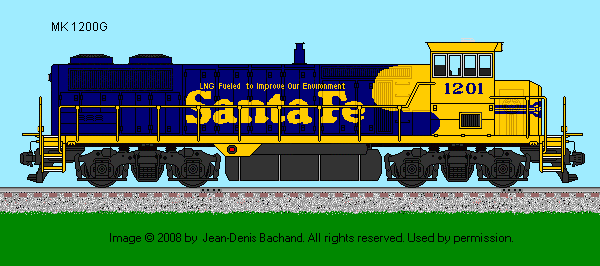

New: 19 April 2008 Artwork by: Jean-Denis Bachand
-
Engine Builder: Caterpillar Engine: 3516
Bore: 170 mm / 165 mm Stroke: 190 mm / 190 mm
RPM Max/Min: 1800/450
Engine Horsepower 1200
Main Generator: KATO Model: 8P6.5-3000
Gear Ratio: 62:15 Speed: 70 mph
Trucks: 4-Wheel Configuration: B-B
Traction Motor Blowers: Delco (4) Model: Electrical Drive
Weight: 250,000 lbs Traction Motors: GM D78B (4)
Tractive Effort (starting) 85,000 lbs @ 25% Tractive Effort (continuous): 55,000 lbs @ 9.3mph
Multiple Unit Capability: Yes Dynamic Braking: Yes
Auxilary Generator: GM D-18 Alternator: Newage
Air Brake: Westinghouse Model: 26L
Quantity Built: 4 Dates: 11/1993 to 6/1994
- -
Exterior Dimensions MK1200G
Total Length 56'-02"
Wheel Diameter 40"
Truck Wheel Base 9'-00"
Height to Top Hood 13'-11"
Height to Top Cab 14'-06"
Cab Width 10'-04"
Hood Width 10'-01"
Height of Walkway 8'-09.5"
Walkway Width 4'-07.5"
Center Bolster 31'-00"
Center Front Truck to Front Pilot 2'-04.5"
Center Rear Truck to Rear Pilot 2'-04.5"
Distance between Truck Centers 40'-00"
Minimum Turning Radious 42 degrees
- -
Fuel Oil: 1400 Lubricating Oil: 82
Engine Cooling Water: 41.5 Sand Capacity: 26 cu. ft.
Options:
  • LNG insulated at minus 260F
-
  • Diesel Locomotives by Greg McDcnnell
  • Diesel Locomotives, Volume 2 by Bob Hayden
