General Electric AC4400CW |
 |
| Data Sheet Information Compiled by: JEAN-DENIS BACHAND |
| Revised: 14 May 2010 |

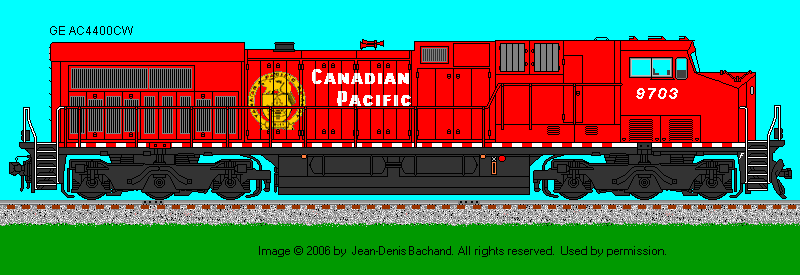

Drawing by: Jean-Denis Bachand |
| 11 February 2006 |
| Engine Builder: General Electric |
Engine: 4-cycle Model 7FDL16 |
| Bore & Stroke |
9" X 10.5" |
| RPM (Maximum / Minimum) |
1050 / 450 |
| Main Generator: GE - GMG196A |
Horsepower: 4400 |
| Gear Ratio: 83:20 |
Speed: 70 mph |
| Trucks: 6-Wheel |
Configuration: Hi-Adhesion C-C |
| Traction Motor Blowers: Mechanical Driven (2) |
Model: ? |
| Weight: 420,000 lbs |
Traction Motors: GE GEB13 (Six) |
| Tractive Effort (starting) 180,000 lbs @ 35% adhesion |
Tractive Effort (continuous): 145,000 lbs @ 13.7 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: GYA30A |
Alternator: GYA30A |
| Air Brake: Westinghouse |
Model: 26L |
| Air Compressor: Westinghouse |
Model: 3CDC |
| Quantity Built: 1872 [including 37 CW (u) ] |
Dates: 6/1993 to Present |
| - |
- |
| Exterior Dimensions
| AC4400CW |
| Total Length |
73'-02" |
| Wheel Diameter |
42" |
| Truck Wheel Base |
13'-02" |
| Height to Top Engine Hood |
15'-06" |
| Height to Top Cab Hood |
15'-04" |
| Cab Width |
10'-03" |
| Hood Width |
9'-11" |
| Top of Walkway |
9'-06" |
| Width of Walkway |
5'-05" |
| Center Bolster |
53'-00" |
| Leading Edge Front Truck to Front Pilot |
1'-07.5" |
| Trailing Edge Rear Truck to Rear Pilot |
1'-07.5" |
| Center of Lead Truck to Center of Trailing Truck |
66'-02" |
| Minimum Turning Radious |
21 degrees |
| -
| - |
| Fuel Oil: 5000 gallons
| Lubricating Oil: 410 gallons |
| Engine Cooling Water: 380 gallons
| Sand Capacity: 55 cu. ft. |
| Options:
Steerable Trucks and DC Traction motots (752AH) |
Reference Sources:
- GE Advanced Generation, 1989, by James W. Kerr
- Trains, September 1999
- Rail Classics, Volume 24 #4 (July/August 1995)
- Diesel Locomotives by Greg McDonnell
|
