General Electric B23-7

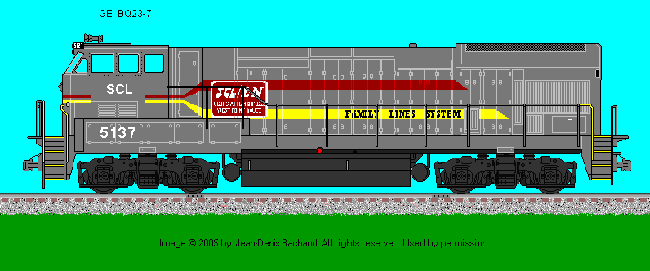

Somebody's Large Digital Image Here
Data Sheet Information Compiled by: JEAN-DENIS BACHAND
New: 25 June 2005 Drawing by: Jean-Denis Bachand
-
Engine Builder: General Electric Engine: 4-cycle Model FDL12
Bore & Stroke 9" X 10.5"
RPM (Maximum / Minimum) 1050 / 450
Main Generator: GE - GTA-11 Horsepower: 2300
Gear Ratio: 74:18 Speed: 70 mph
Trucks: FB-2 4-Wheel Configuration: B-B
Traction Motor Blowers: Mechanical Driven (2) Model: ?
Weight: 253,000 lbs Traction Motors: GE 752AF (Four)
Tractive Effort (starting) 63,250 lbs @ 25% Tractive Effort (continuous): 61,000 lbs @ 10.7 mph
Multiple Unit Capability: Yes Dynamic Braking: Yes
Auxilary Generator: GY 27 Alternator: GY27
Air Brake: Westinghouse Model: 26NL
Air Compressor: Westinghouse Model: 3CDC
Quantity Built: 536 Dates: 9/1977 to 12/1984
- -
Exterior Dimensions B23-7
Total Length 61'-02"
Wheel Diameter 40"
Truck Wheel Base 9'-04"
Height to Top Engine Hood 15'-04"
Height to Top Cab Hood 14'-07"
Cab Width 10'-02"
Hood Width 9'-11"
Top of Walkway 13'-06"
Width of Walkway 5'-00"
Center Bolster 36'-08"
Leading Edge Front Truck to Front Pilot 1'-09"
Trailing Edge Rear Truck to Rear Pilot 1'-09"
Leading Edge Front Truck to Trailing Edge Rear Truck 45'-08"
Minimum Turning Radious 23 degrees
- -
Fuel Oil: 2150 gallons Lubricating Oil: 350 gallons
Engine Cooling Water: 300 gallons Sand Capacity: 60 cu. ft.
Options:
  • 2900 Gallon Fuel Tank
Blank

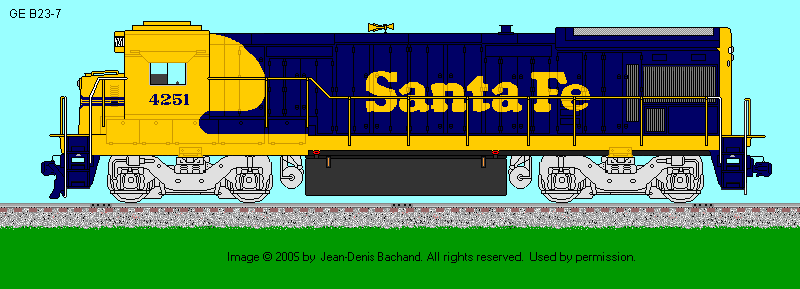

Somebody's Large Digital Image Here
Drawing by: Jean-Denis Bachand
Reference Sources:
  • GE Advanced Generation, 1989, by James W. Kerr
  • GE Locomotives, volumes 1 & 2, 1981, by James W. Kerr
  • Car & Locomotive Cyclopedia, 1984, by Simmons & Boardman
  • The Modern Locomotive Handbook, 1979, Railway Fuel & Operating Officers Assn.
  • Diesel & Electric Locomotive Specifications, 1981, by F. K. Hudson.
  • GE Advanced Generation, 1989, by James W. Kerr
  • GE U33B Technical Manual, 1967
