Bombardier LRC-2 (M439)

Somebody's Large Digital Image Here

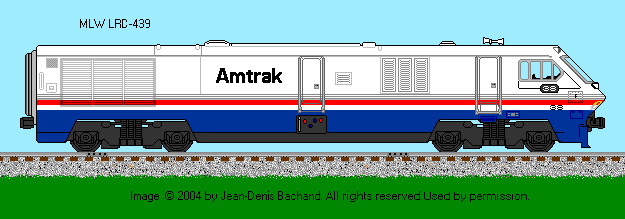

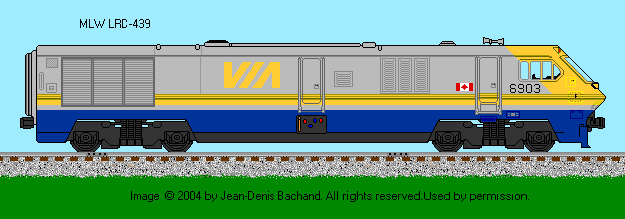

Data Sheet Information Compiled by: JEAN-DENIS BACHAND
New: 12 March 2005 Drawing by: Jean-Denis Bachand
-
Engine Builder: Monteal Locomotive Works Engine: 4-cycle Model 251F V16
Bore & Stroke 9" X 10.5"
RPM (maximum / minimum) 1025 / 350
Main Generator: GE 581 Horsepower: 3725
Trucks: B-B Classification: AAR-H
Gear Ratio: 71:32 Speed: 125 mph
Weight: 230,000 lbs (approx.) Traction Motors: GE 752 (Four)
Traction Motor Blowers: GE Type and Number: NC390 (Two)
Tractive Effort (starting) 57,500 lbs @ 25% Tractive Effort (continuous): 30,720 Lbs. @ 11 mph
Multiple Unit Capability: Yes Dynamic Braking: Yes
Auxilary Generator: GE GY27 Alternator: GE GTAPI Type 6
Air Brake: Westinghouse Model: 26L
Compressor: Westinghouse Model: 3CDC
Electric Power: 3/60 Hz 500Kw 480v
Quantity Built: 33 Cab units Date: February 1980 to March 1982
- -
Exterior Dimensions Cab Unit
Total Length 63'-08"
Pilot to Pilot 60'-04"
Wheel Diameter 40"
Truck Wheel Base 9'-09"
Height to Top Engine Hood 12'-05"
Height to Top Cab Hood 12'-00"
Cab Width 10'-05"
Walkway Width None
Engine Hood Width 10'-05"
Center Bolster 40'-08"
Center Front Truck to Front Pilot 9'-09"
Center Rear Truck to Rear Pilot 10'-02"
Distance between Truck Centers 50'-01"
Minimum Turning Radius 23 degrees
- -
Fuel Oil: 1665 Gallons Lubricating Oil: 281 Gallons
Engine Cooling Water: 331 Gallons Sand Capacity: 22 Cubic Feet
Equipment & Options:
-
Reference Sources:
  • Bombardier Drawing Plan
  • Via Mechnical Data Book
