General Electric Turbine (Veranda) |
.gif) |
| Data Sheet Information Compiled by: JEAN-DENIS BACHAND |
| New: 27 January 2006 |

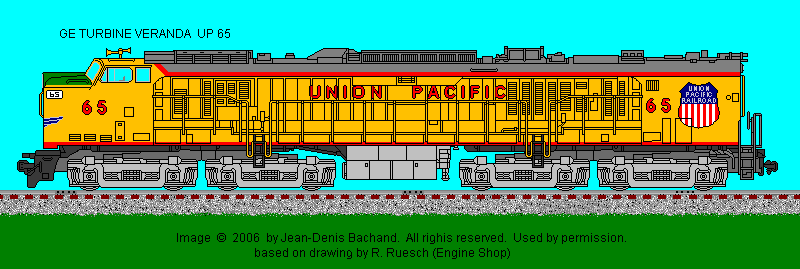

Drawing by: Jean-Denis Bachand |
| - |
| Engine Builder: General Electric |
Engine: 15-stage Turbine |
| Bore & Stroke |
N/A |
| RPM (Maximum / Minimum) |
6900 / 4700 |
| Main Generator: GE - GT576C1 |
Horsepower: 4500 / 3800 |
| Gear Ratio: 74:18 |
Speed: 65 mph |
| Trucks: 4-Wheel |
Configuration: B-B + B-B |
| Traction Motor Blowers: Mechanical Driven (4) |
Model: ? |
| Weight:551,720 lbs |
Traction Motors: GE 752 E1 (eight) |
| Tractive Effort (starting) 137,930 lbs @ 25% |
Tractive Effort (continuous): 105,000 lbs @ 12.9 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: GY 27 |
Alternator: GY27 |
| Air Brake: Westinghouse |
Model: 24L |
| Air Compressor: Westinghouse |
Model: 3CDC |
| Quantity Built: 21
|
Dates: 3/1954 to 10/1954 |
| - |
- |
| Exterior Dimensions
| Gas Turbine (Veranda) |
| Total Length |
83'-08.5" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
9'-04" |
| Height to Top Engine Hood |
15'-08" |
| Height to Top Cab Hood |
14'-08" |
| Cab Width |
10'-09.5" |
| Hood Width |
10'-00" |
| Top of Walkway |
7'-04" |
| Width of Walkway |
5'-00" |
| Center Bolster |
41'-06" |
| Leading Edge Front Truck to Front Pilot |
7'-09" |
| Trailing Edge Rear Truck to Rear Pilot |
7'-09" |
| Center of Lead Truck to Center of Trailing Truck |
68'-01" |
| Minimum Turning Radious |
21 degrees |
| -
| - |
| Fuel Oil: 7000 / 1000 gallons
| Lubricating Oil: 300 gallons |
| Engine Cooling Water: 145 gallons
| Sand Capacity: 37 cu. ft. |
| Options: |
Reference Sources:
- GE Locomotives, volumes 1 & 2, 1981, by James W. Kerr
- Car & Locomotive Cyclopedia, 1984, by Simmons & Boardman
- Giants of the West, 1981, George R. Cockle.
- Diesel & Electric Locomotive Specifications, 1981, by F. K. Hudson.
- GE Advanced Generation, 1989, by James W. Kerr
|
