General Electric U18B |
 |
| Data Sheet Information Compiled by: JEAN-DENIS BACHAND |
| New: 11 June 2005 |

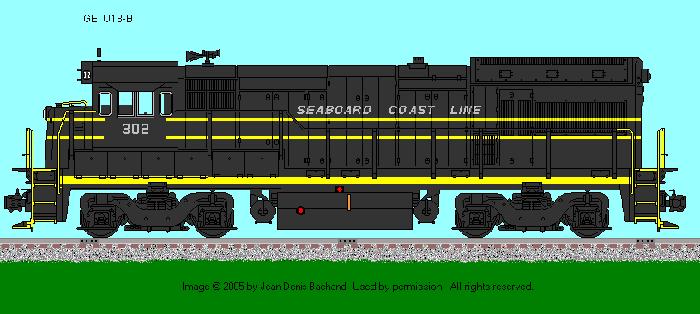

Drawing by: Jean-Denis Bachand |
| - |
| Engine Builder: General Electric |
Engine: 4-cycle Model FDL8 |
| Bore & Stroke |
9" X 10.5" |
| RPM (Maximum / Minimum) |
1050 / 650 |
| Main Generator: GE - GT581 |
Horsepower: 1800 |
| Gear Ratio: 74:18 |
Speed: 70 mph |
| 4-Wheel |
Configuration: B-B |
| Traction Motor Blowers: GE NC330 |
Number: 2 |
| Weight: 219,000 lbs |
Traction Motors: GE 752-E6 (Four) |
| Tractive Effort (starting) 83,500 lbs @ 25% |
Tractive Effort (continuous): 57,500 lbs @ 10.7 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: GE GY27 |
Alternator: GY27 |
| Air Brake: Westinghouse |
Model: 26NL |
| Air Compressor: Westinghouse |
Model: 3CDC |
| Quantity Built: 163
|
Dates: 3/1973 to 10/1976 |
| - |
- |
| Exterior Dimensions
| U18B |
| Total Length |
54'-08" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
9'-03" |
| Height to Hood Top |
14'-09.5" |
| Height to Top Cab |
14'-04.5" |
| Cab Width |
10'-03" |
| Top of Walkway |
9'-01.5" |
| Walkway Width |
5'-00" |
| Center Bolster |
30'-08" |
| Leading Edge Front Truck to Front Pilot |
3'-00.5" |
| Trailing Edge Rear Truck to Rear Pilot |
3'-00.5" |
| Leading Edge Front Truck to Trailing Edge Rear Truck |
39'-11" |
| Minimum Turning Radious |
29 degrees |
| -
| - |
| Fuel Oil: 1700
| Lubricating Oil: 160 |
| Engine Cooling Water: 330
| Sand Capacity: 60 cu. ft. |
| Options: |
Reference Sources:
- GE Advanced Generation, 1989 by James W. Kerr
- GE Locomotives Vols 1 & 2, 1981, by James W. Kerr
- Car & Locomotive Encyclopedia, 1984, Simmons & Boardman Publications
- Moden Locomotive Handbook, 1979, Railway Fuel & Operating Officers Assn.
- Diesel & Electric Locomotives Specifications, 1981, by F. K. Hudson
- GE U18B Technical Mahual, 1973
|
