General Electric UD18B |
 |
| Data Sheet Information Compiled by: JEAN-DENIS BACHAND |
| New: 27 July 2007 |

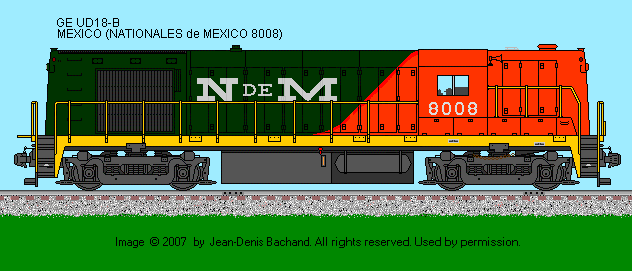

Drawing by: Jean-Denis Bachand |
| - |
| Engine Builder: Cooper Bessemer |
Engine: 4-cycle Model FVBL-12T |
| Bore & Stroke |
9" X 10.5" |
| RPM (Maximum / Minimum) |
1050 / 650 |
| Main Generator: GE - GT581 |
Horsepower: 1800 |
| Gear Ratio: 74:18 |
Speed: 70 mph |
| 6-Wheel |
Configuration: C-C |
| Traction Motor Blowers: GE NC330 |
Number: 2 |
| Weight: 219,000 lbs |
Traction Motors: GE 752 (Four) |
| Tractive Effort (starting) 70,000 lbs @ 25% |
Tractive Effort (continuous): 64,000 lbs @ 10.7 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: GE GY27 |
Alternator: GMG-146 |
| Air Brake: Westinghouse |
Model: 26L |
| Air Compressor: Westinghouse |
Model: 3CDC |
| Quantity Built: 10
|
Dates: 1956 |
| - |
- |
| Exterior Dimensions
| UD18B |
| Total Length |
60'-02" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
9'-04" |
| Height to Hood Top |
15'-03.5" |
| Height to Top Cab |
14'-07" |
| Cab Width |
10'-06" |
| Top of Walkway |
9'-04.5" |
| Walkway Width |
5'-00" |
| Center Bolster |
36'-02" |
| Leading Edge Front Truck to Front Pilot |
3'-00.5" |
| Trailing Edge Rear Truck to Rear Pilot |
3'-00.5" |
| Leading Edge Front Truck to Trailing Edge Rear Truck |
39'-11" |
| Minimum Turning Radious |
29 degrees |
| -
| - |
| Fuel Oil: 1700
| Lubricating Oil: 365 |
| Engine Cooling Water: 290
| Sand Capacity: 60 cu. ft. |
