Baldwin AS-416ROSTER Somebody's Large Digital Image Here

Photo by: xxxxx

New: 19 November 2004 Info from: John Komanesky
- --
Original owner Road Numbers Qty. Bldr Numbers Bldr Dates
Columbus & Greenville 606 1 75273 9/51
Norfolk Southern 1601, 1602 2 75237, 75238 5, 6/51
1603-1605 3 75239-75241 7/51
1606 1 75699 9/52
1607, 1608 2 75721, 75722 9/52
1609, 1610 2 75723, 75724 10/52
1611-1613 3 75938-75940 1/54
1614, 1615 2 76037, 76038 3/55
1616, 1617 2 76112, 76114 12/55
Savannah & Atlanta 108 1 75111 12/50
109, 110 2 74675, 76107 7/52, 8/55
Spotting Features:

Technical Data Somebody's Large Digital Image Here

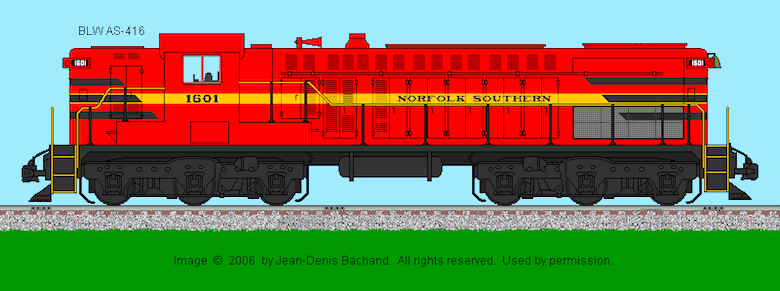

Reformatted: 31 October 2020 Data Sheet and drawing by: JEAN-DENIS BACHAND
-
Engine Builder: BLW Engine: 4-cycle Model 608 SC
Bore & Stroke 12.5" X 15.5"
RPM (Maximum) 625
Main Generator: Westinghouse - WE471 Horsepower: 1600
Gear Ratio: 68:15 Speed: 65 mph
Trucks: 6-Wheel Configuration: A1A-A1A
Traction Motor Blowers: Westinghouse (2) Model: ?
Weight: 245,800 lbs Traction Motors: Westinghouse - WE370 (4)
Tractive Effort (starting) 88,500 lbs @ 25% Tractive Effort (continuous): 52,500 lbs @ 9.2 mph
Multiple Unit Capability: No Dynamic Braking: No
Auxilary Generator: Westinghouse Alternator: --
Air Brake: Westinghouse Model: 6SL
Compressor: Westinghouse Model: 3C2C
Quantity Built: 21 Dates: 3/1951 to 12/1955
- -
Exterior Dimensions AS-416
Total Length 58'-00"
Wheel Diameter 42"
Truck Wheel Base 11'-06"
Height to Top Engine Hood 13'-10.5"
Height to Top Cab Hood 14'-00"
Cab Width 10'-00"
Top of Walkway 7'-03"
Walkway Width 5'-08.5"
Engine Hood Width 9'-10"
Center Bolster 32'-03"
Center Front Truck to Front Pilot 3'-04"
Center Rear Truck to Rear Pilot 3'-04"
Distance between Truck Centers 45'-03"
Minimum Turning Radious 30 degrees
- -
Fuel Oil: 900 Lubricating Oil: 200
Engine Cooling Water: 300 Sand Capacity: 30 cu. ft.
Options:
VApor Clarkson Steam Boiler (2500 lbs./hour)
- -
Reference Sources:
  • Diesel Locomtoives, Vol.2, by Bob Hayden
  • Baldwin Diesel Locomotives by Stephen F. & Gary W. Dolzall
  • Illustrated Treasury of Baldwin Locomotives by James W. Kerr
  • Diesel Locomotives, The First 50 Years by Louis A. Mare
  • "Early Diesel and Electric Locomotives," Rail Heritage Publications
  • Diesel & Electric Locomotive Specificiations, 1981 by F.K. Hudson
  • Train Shed Cyclopedia, Vol. 20, 58, 60, 64, 80
  • Railroad Model Craftsman, November 1969
  • Railroad Modeler, March 1975
