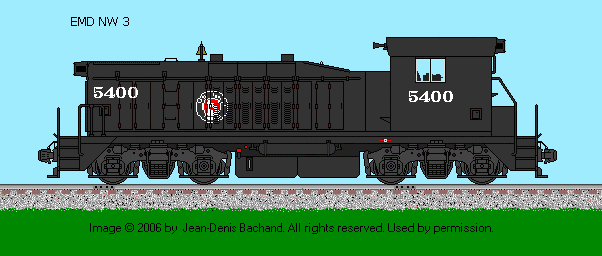

EMD NW3 |
 |
| Data Sheet Information Compiled by: JEAN-DENIS BACHAND |
| Revised: 10 Feb. 2014 |
Artwork by: Jean-Denis Bachand |
| - |
| Engine Builder: EMD |
Engine: 567A 12 cylinder |
| Bore & Stroke |
8" X 10" |
| RPM (Maximum / Minimum) |
800 / 275 |
| Main Generator: GM D7 |
Horsepower: 900 |
| Gear Ratio: 59:18 |
Speed: 83 mph |
| Trucks: 4-Wheel |
Configuration: B-B |
| Traction Motor Blowers: Mechanical Drive (2) |
Model: GM |
| Weight: 214,000 lbs |
Traction Motors: GM D4 (four) |
| Tractive Effort (starting) 53,500 lbs @25% |
Tractive Effort (continuous): 31,000 lbs @ 11.0 mph |
| Multiple Unit Capability: Optional |
Dynamic Braking: No |
| Auxilary Generator: GM |
Alternator: Delco |
| Air Brake: Westinghouse |
Model: 24EL |
| Compressor: GMD |
Model: WXO |
| Quantity Built: 7
|
Dates: 11/1939 to 3/1942 |
| - |
- |
| Exterior Dimensions
| NW3 |
| Total Length |
53'-10.5" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
8'-10" |
| Height to Top Engine Hood |
11'-11" |
| Height to Top Cab Hood |
14'-09" |
| Cab Width |
9'-11.5" |
| Top of Walkway |
4'-07.5" |
| Engine Hood Width |
7'-00" |
| Distance between Truck Centers |
22'-00" |
| Wheel Base (locomotive) |
30'-10" |
| Minimum Turning Radious |
57 degrees |
| -
| - |
| Fuel Oil: 600
| Lubricating Oil: 165 |
| Engine Cooling Water: 220
| Sand Capacity: 28 cu. ft. |
| Options: None |
| - |
