GE U9B |
 |
| - |
| Data Sheet Information Compiled by: JEAN-DENIS BACHAND |
| New: 25 March 2007 |

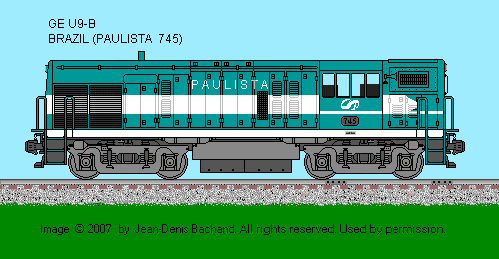

Drawing by: Jean-Denis Bachand |
| - |
| Engine Builders: Caterpillar and Cummins |
4-cycle Engine: FWL-8T |
| Bore & Stroke |
9" X 10.5" |
| RPM (Maximum / Minimum) |
1000 / 400 |
| Main Generator: GE - GT751 |
Horsepower: 1060 |
| Gear Ratio: 103:15 |
Speed: 55 mph |
| Trucks: 4-Wheel |
Configuration: B-B |
| Traction Motor Blowers: Mechanically Driven |
Model: GE GY27 (two) |
| Weight: 120,000 lbs |
Traction Motors: GE 748 (four) |
| Tractive Effort (starting) 27,000 lbs @ 30% |
Tractive Effort (continuous): 12,500 lbs @ 20 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: GE GY27 |
Alternator: GE GMG-146 |
| Air Brake: Westinghouse |
Model: 26LA |
| Compressor: Westinghouse |
Model: 2CDC |
| Quantity Built: Unknown |
Dates: 1957 to 1962 |
| - |
- |
| Exterior Dimensions
| U9B |
| Total Length |
33'-06" (Phase 1) and 37'-0" (Phase 2) |
| Wheel Diameter |
36" |
| Truck Wheel Base |
7'-02" |
| Height to Top Engine Hood |
12'-00" |
| Height to Top Cab |
11'-10" |
| Cab Width |
9'-00" |
| Engine Hood Width |
8'-10" |
| Walkway Width |
4'-00" |
| Height Walkway |
9'-00" |
| Center Bolster |
19'-05" |
| Center Front Truck to Front Pilot |
0'-06" |
| Center Rear Tucrk to Rear Pilot |
0'-06" |
| Distance between Truck Centers |
26'-03" |
| Minimum Turning Radious |
57 degrees |
| -
| - |
| Fuel Oil: 400
| Lubricating Oil: 120 |
| Engine Cooling Water: 140
| Sand Capacity: 12 cu. ft. |
| Options: |
| - |
Reference Sources:
- GE Advanced Generation,1989, by James W. Kerr
- GE Locomotives, Volume 1, 1981 by James W. Kerr
- GE Locomotives, Volume 2, 1981 by James W. Kerr
- The Car & Locomotive Encyclopedia, 1984, Simmons & Boardman Publications
- The Modern Locomotives Handbook, 1979, Railway Fuel & Operating Officers Association
- Diesel & Electric Locomotive Specifications, 1981 by F.K. Hudson
- GE Export U-Series Model Evolution, by Steve Palmano
|
