Bombardier LRC (M429) |
 |
| Data Sheet Information Compiled by: JEAN-DENIS BACHAND |
| New: 12 March 2005 |

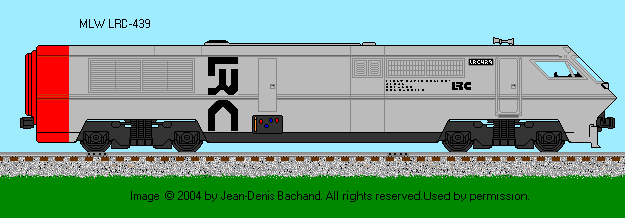

Drawing by: Jean-Denis Bachand |
| - |
| Engine Builder: Monteal Locomotive Works |
Engine: 4-cycle Model 251F V12 |
| Bore & Stroke |
9" X 10.5" |
| RPM (maximum / minimum) |
1025 / 350 |
| Main Generator: GE 581 |
Horsepower: 2900 |
| Trucks: B-B |
Classification: AAR-H |
| Gear Ratio: 71:32 |
Speed: 125 mph |
| Weight: 230,000 lbs (approx.) |
Traction Motors: GE 752 (Four) |
| Traction Motor Blowers: GE |
Type and Number: NC390 (Two) |
| Tractive Effort (starting) 57,500 lbs @ 25% |
Tractive Effort (continuous): 30,720 Lbs. @ 11 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: GE GY27 |
Alternator: GE GTAPI Type 6 |
| Air Brake: Westinghouse |
Model: 26L |
| Compressor: Westinghouse |
Model: 3CDC |
| Electric Power: 3/60 Hz |
500Kw 480v |
| Quantity Built: 1 (Demonstrator) |
Date: 1973 |
| -
| - |
| Exterior Dimensions
| Cab Unit |
| Total Length |
65'-04" |
| Pilot to Pilot |
60'-04" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
9'-09" |
| Height to Top Engine Hood |
12'-05" |
| Height to Top Cab Hood |
12'-00" |
| Cab Width |
10'-05" |
| Walkway Width |
None |
| Engine Hood Width |
10'-05" |
| Center Bolster |
40'-08" |
| Center Front Truck to Front Pilot |
9'-09" |
| Center Rear Truck to Rear Pilot |
10'-02" |
| Distance between Truck Centers |
50'-01" |
| Minimum Turning Radius |
23 degrees |
| -
| - |
| Fuel Oil: 1665 Gallons |
Lubricating Oil: 281 Gallons |
| Engine Cooling Water: 331 Gallons |
Sand Capacity: 22 Cubic Feet |
| Equipment & Options: |
Reference Sources:
- Bombardier Drawing Plan
- Via Mechnical Data Book
|
