GE Super 88 |
|
---|---|
| |
General Electric's center cab locomotive concept during the 1940s and 1950s afforded the
builder an effective means of producing a wide-range of 35 to 80-ton railroad and industrial
-type switchers in standard and narrow-gauge configuration. It also facilitated the response
to customers with special clearance, performance and extra-ordinary horsepower requirements.
One such locomotive was the Super 88; rated at 940-hp, it clearly out-muscled all other center
cabs to the exclusion of large Baldwin and Lima six-axle transfer power.
The 88 was driven by a pair of Cummins VT12 prime movers that were capable of producing a whooping 1200 horsepower; however in this application 940 hp was the max. Production of the limited-run model (only ten copies built) began in February 1956 and concluded in December of 1958. Although not initially viewed as an export model, seven of the ten 88s saw service beyond U.S. borders. (See accompanying roster). At first glance, the Super 88 could be easily mistaken for a standard 80-ton model; but there are a few features that make a distinction easy:
Prepared by: R. Craig Rutherford (1 April 2023) | |

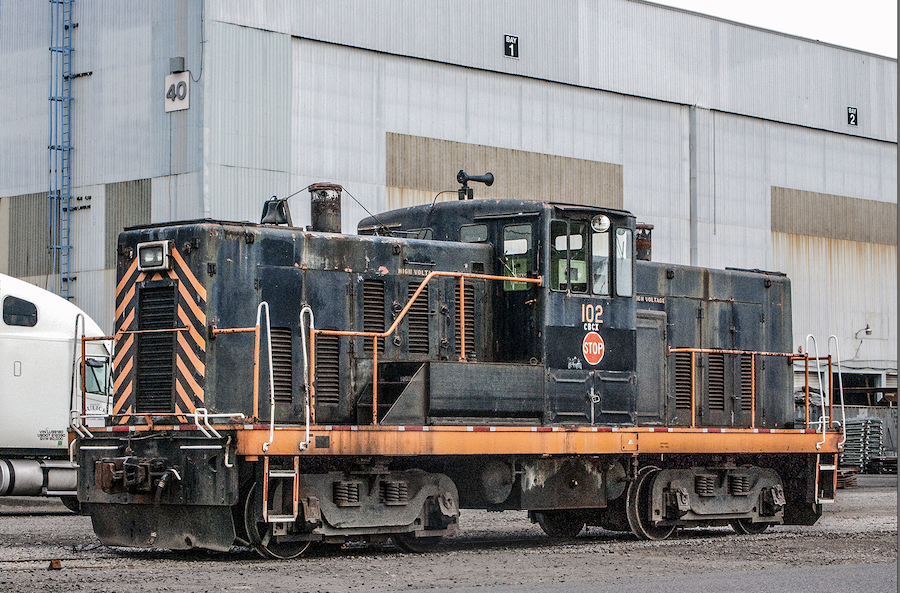

CBCX 102 (ex-Pacific Lumber same #) had been stored for several years until
acquired by the business park in 1996.(Charles Stookey photo at Vancouver, Washington
on 16 December 2008)
|

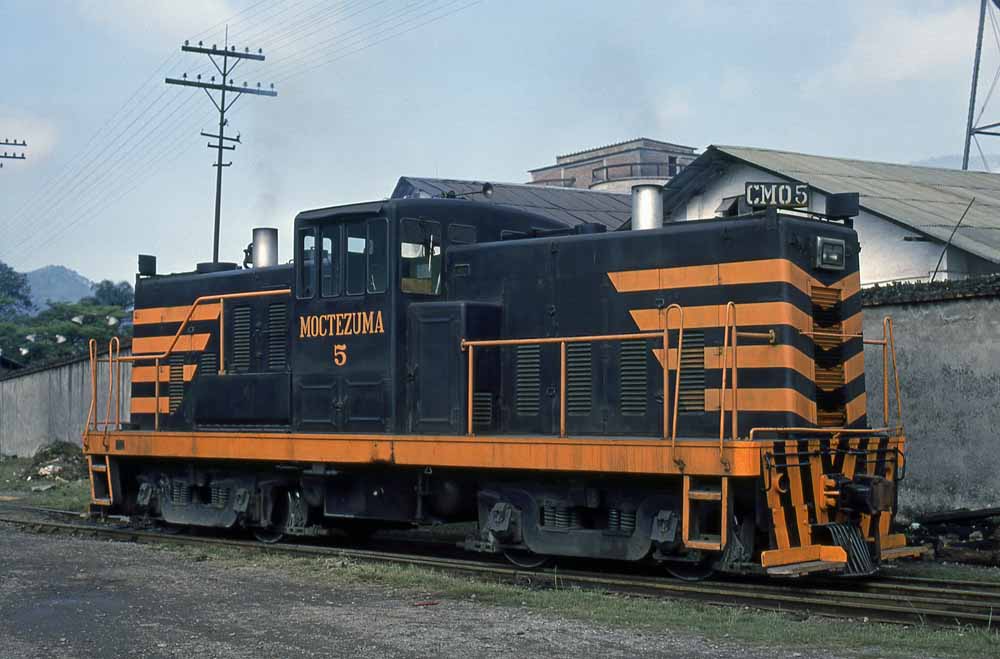

Moctezuma CM5's single large exhaust stack helps identify the 80-tonner as
ex-Pacific Lumber #103. The four-axle loco is believed to be the only Super 88 to work in
Mexico. (Matt Herson photo / Jeff Moore collection)
|
Winifrede RR's 80-ton #12 went to work for the West Virginia short line during
the Summer of 1957. However, the acquisition of a new SW1500 by the railroad in 1969 pushed
the GE into retirement and eventual sale. (GE Builder photo found on internet)
|
This photo of Diamond Shamrock #22 (ex-Winifrede #12) clearly shows the twin-exhaust
stacks utilized on the Super 88s that were constructed by GE after January 1957.(George C.
Werner photo on 5 May 1973 at Deer Park, Texas.**)
|

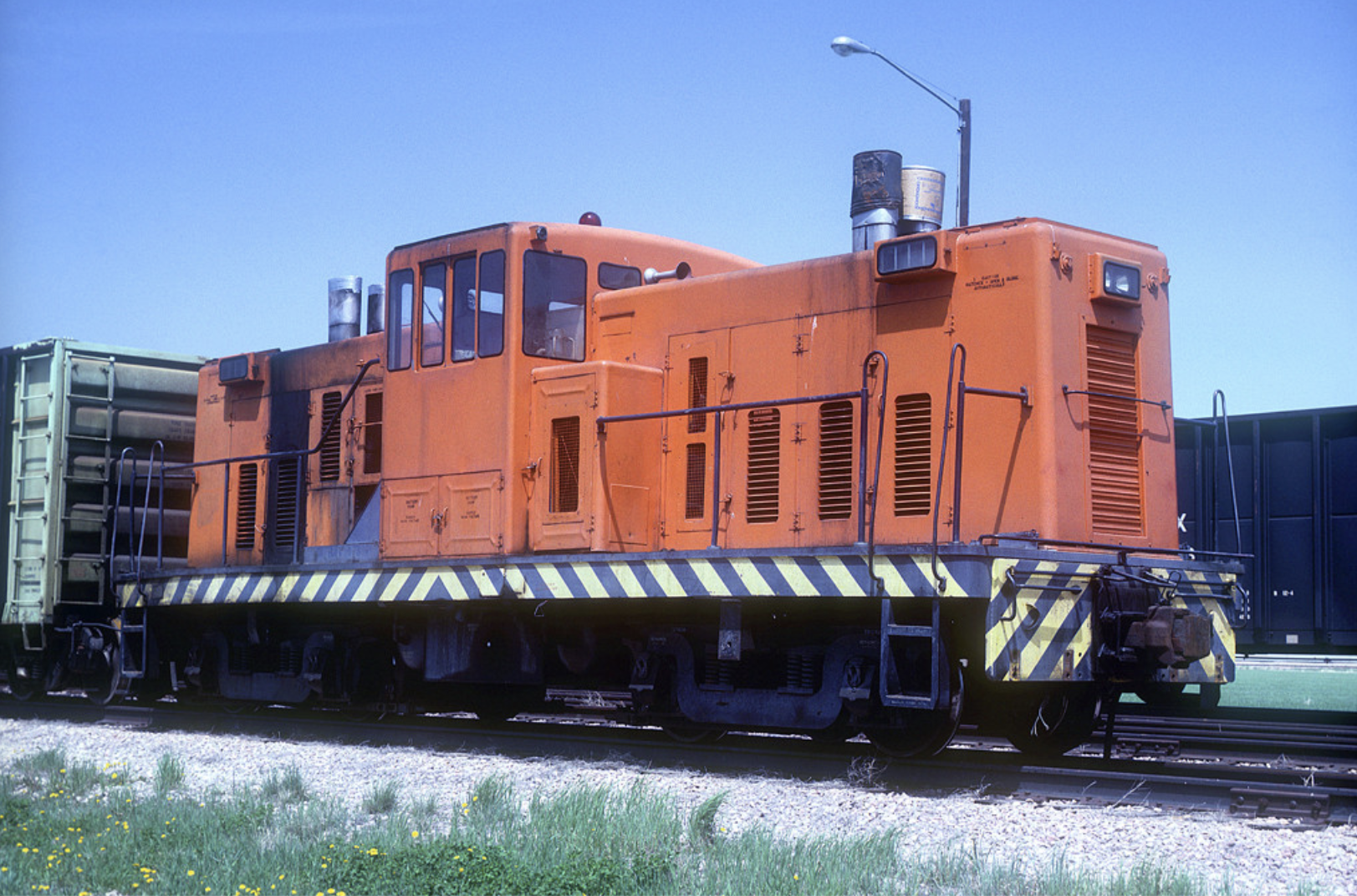

Super 88 #777 (ex-Winifrede #12) was acquired by SWEPCO in 1978, and it spent
most of its time prior to retirement at the power plant in Alliance Nebraska. (Jim Altman
photo on 14 May 1984 at Alliance / Chuck Zeiler collection)
|

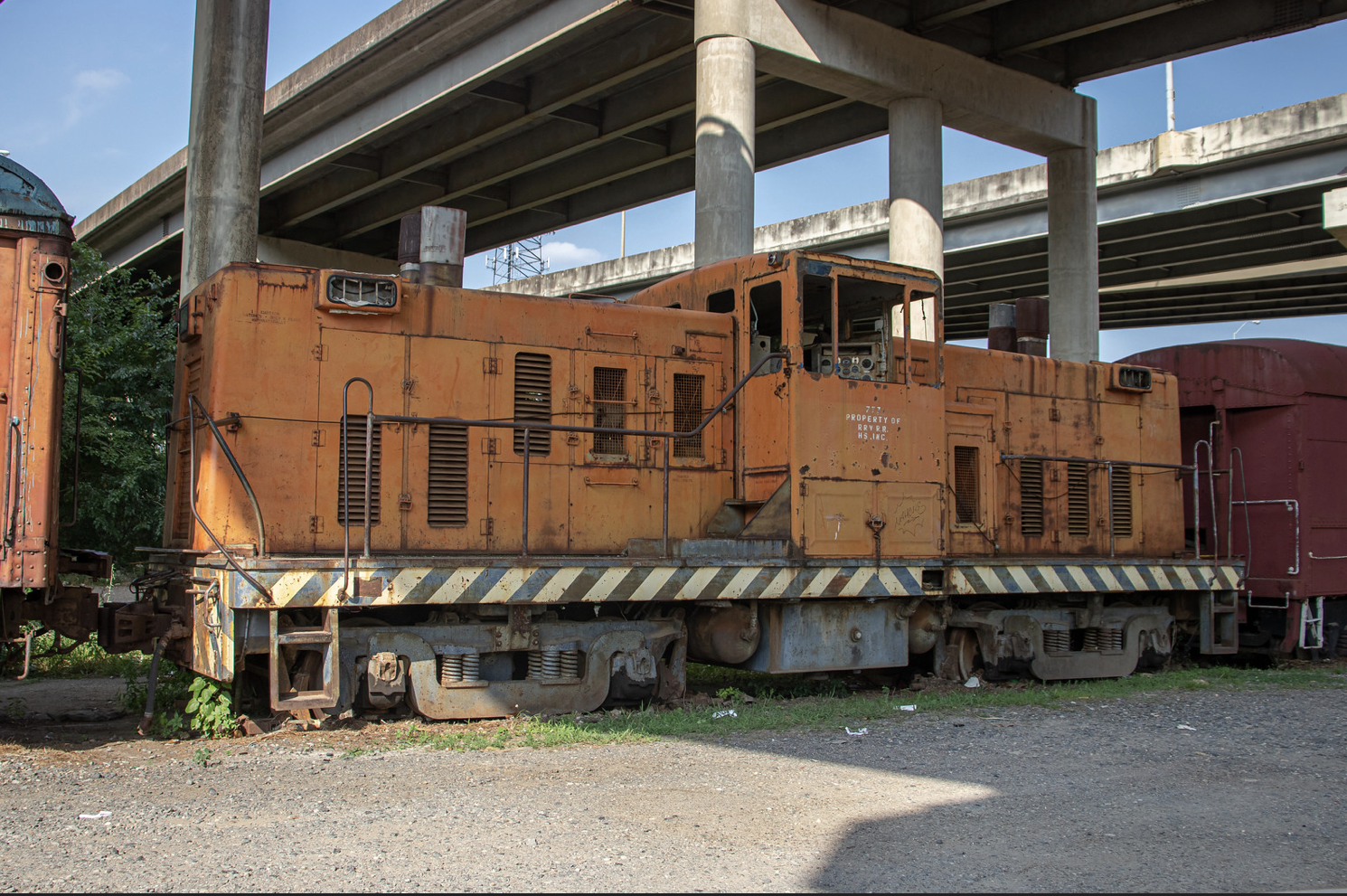

In 1994, ownership of the ex-Winifrede 80-ton unit was transferred to the RRVRHS.
Based on the last report, the four-axle switcher presently resides across the street from the
train station in Shreveport, Louisiana. (Jamie Swain photo)
|
Missing Photos Photos of the six Super 88s shipped to owners in Cuba are not readily available nor is information on their history. |
Super 88 RosterPrepared with the assistance of Mark Nilges |
|||||
---|---|---|---|---|---|
Serial # (Tons) | Original Owner | Road # | Bldr date | Batch Number | Notes |
32395 (80T) | Pacific Lumber Co. | 101 | 2/1956 | -- | Sold to Oregan Pacific > Columbia Business Center (1996) |
32413 (80T) | Pacific Lumber Co. | 102 | 12/1956 | -- | Sold to Oregon Pacific > Columbia Business Center (1997) |
32414 (80T) | Pacific Lumber Co. | 103 | 12/1956 | -- | Sold in 1980 to Cerveceria Moctezuma Brewery (Vera Cruz, Mexico) |
32415 (77T) | Cubana S.A. | ?? | 11/1957 | -- | -- |
32416 (80T) | Cubana S.A. | ?? | 6/1958 | -- | -- |
32820 (80T) | Winifrede RR | 12 | 7/1957 | -- | Sold to Diamond Shamrock #22 |
32821 (82T) | GE Cubana S.A. | ?? | 10/1958 | -- | -- |
32822 (82T) | GE Cubana S.A. | ?? | 11/1958 | -- | -- |
32823 (82T) | GE Cubana S.A. | ?? | 11/1958 | -- | -- |
32824 (82T) | GE Cubana S.A. | ?? | 12/1958 | -- | -- |
