MK Rail's 5000C

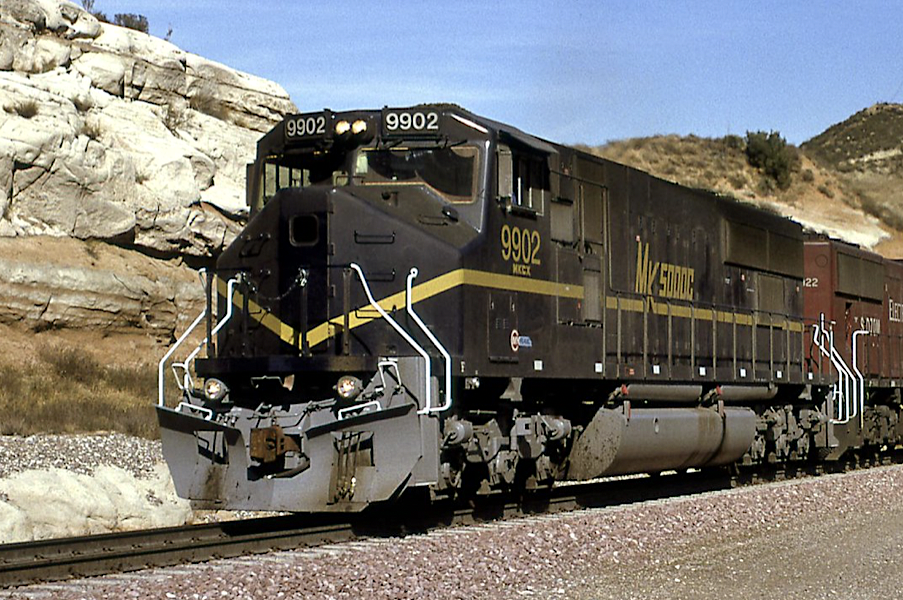

MK5000C 9902 was one of MKCX demonstrators. (Joseph Blackwell photo)

The railroad industry got its first look at Morrison-Knudsen's MK5000C during the Summer of 1994. Driven by a Caterpillar 3612 power-plant, the 71-foot-long newcomer was the first diesel-electric locomotive to reach the 5000-horsepower plateau using only a single V12 engine. Two additional MK5000Cs were finished concurrently to form a 15000-hp demonstrator team. Assigned road numbers 501-503, the trio wore Southern Pacific's Lark grey and Scarlet red with white Espee lettering. A second three-unit demonstrator set was built the following year. Slightly longer at 73-feet, they sported a newly adopted deep blue attire with gold accent striping and numbers 9901 to 9903. The three-some demonstrated initially on the Union Pacific; however, within a year all of the six-axle freight haulers were back at the builder's Boise, Idaho plant undergoing modifications / improvements.

When the MK5000Cs re-surfaced years later, it was under the banner of Motive Power Industries, and they had been re-numbered 9901 to 9906. After a short trial period, Utah Railway purchased all six units in 2001 for coal train service. MPI had already cancelled future production of the 5000-hp model, including three partially constructed units.

The 5000Cs returned to Boise during 2002 and 2003 to eliminate on-going drive-train failures. The Caterpillar engine and Kato traction generator were replaced with a Wabtec V16 645F3B prime mover, along with an AR11 main alternator -- and were dubbed MK50-3s. In 2017, Utah Rwy transferred the MKs to another Genesse & Wyoming subsidiary -- the Kansas-based Kyle Railroad.

As a footnote: MPI also built one SD50M-3 locomotive by mounting a cab and nose section from one of the unfinished MK5000Cs to ex-ATSF SD45B 5501; a 3500-hp EMD 645 engine was also installed. Identified as MPEX 5000, the loco wore Dakota Missouri and Eastern attire and was evaluated by the carrier for use in potential Powder River Basin coal service, which never materialized. It also spent a short stint on the Canadian Pacific.

Photo Gallery

MK5000Cs SP 503 and MKC 9903 at Tacoma, WA on 19 September 1998.

Craig Rutherford photo

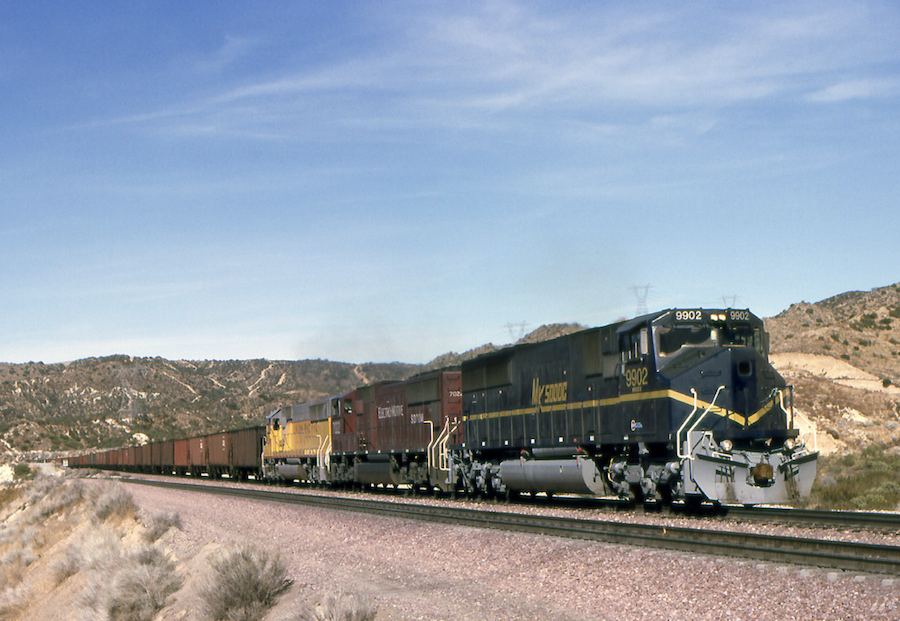

MPI 9902 with a UP coal train at Cajon, CA in January 1997

Joseph Blackwell photo

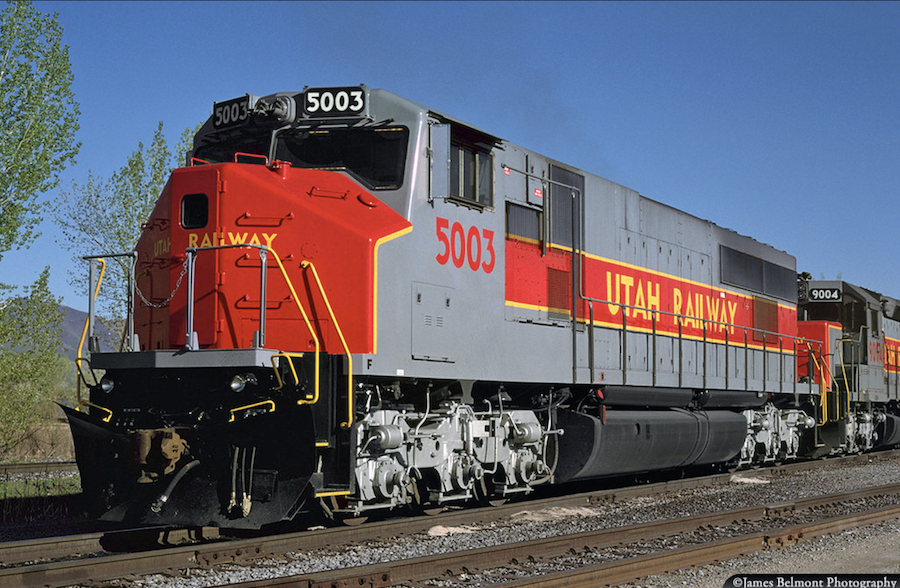

Utah 5003 at Springville, UT on 25 April 2001 soon after purchase.

James Belmont photo

Utah MK50-3 5005 with tonnage at Provo, Utah on 10 November 2016

Steven McKay photo

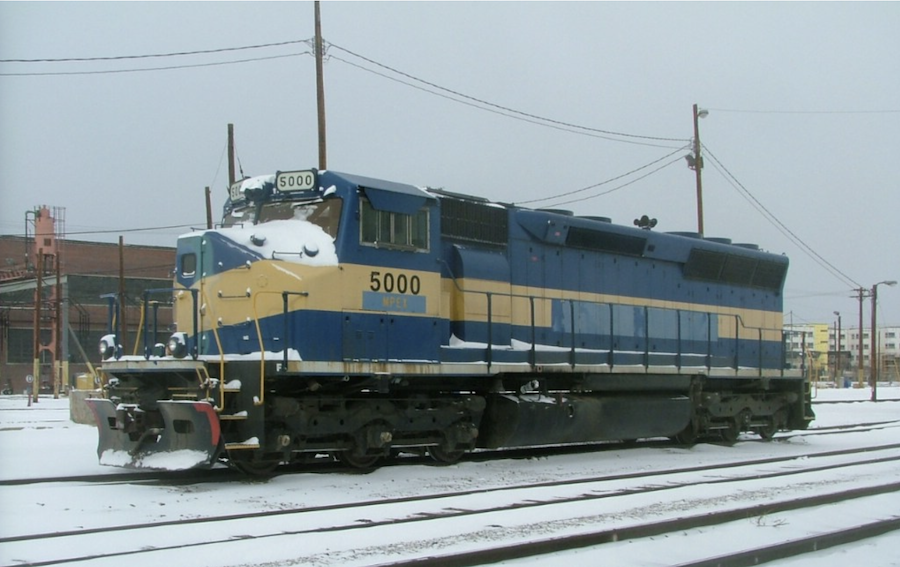

MPEX MK50-3 5000 at Denver, Colorado on 14 September 2008

Ben Helsel photo

Notes and Reference sources:

  • Extra 2200 South Locomotive Newsletter, Issue 125, December 2003, pages 32-33
  • Diesel Era, Volume 12, Issue 5, September/October 2001, page 5
  • Don Strack's Utah Rails website
  • Wikipedia (Internet)

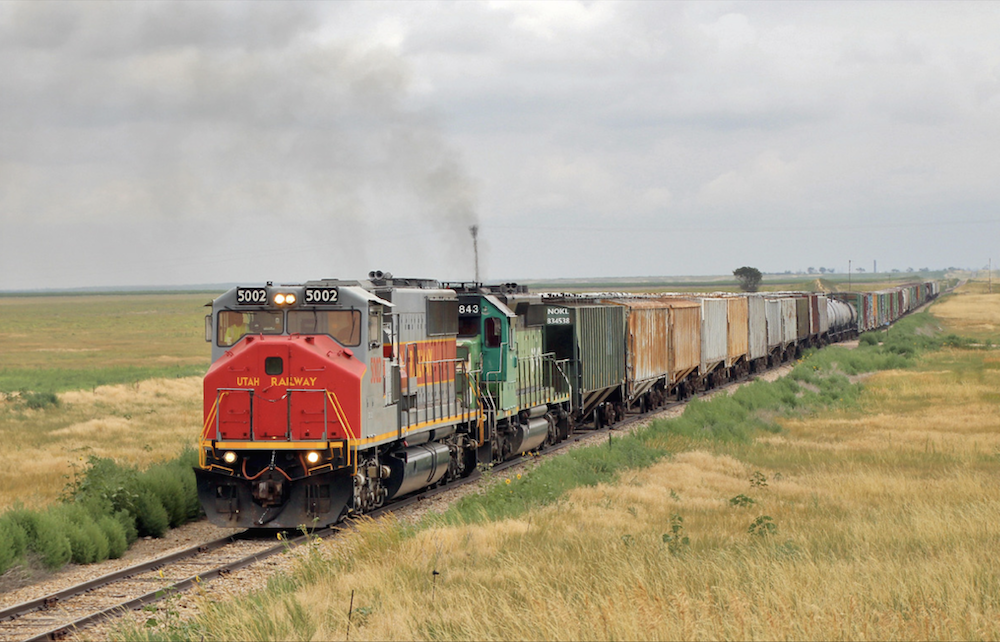

Kyle Rwy MK50-3 5002 (ex-Utah) at Seibert, Colorado in July 2017

Joseph Blackwell photo

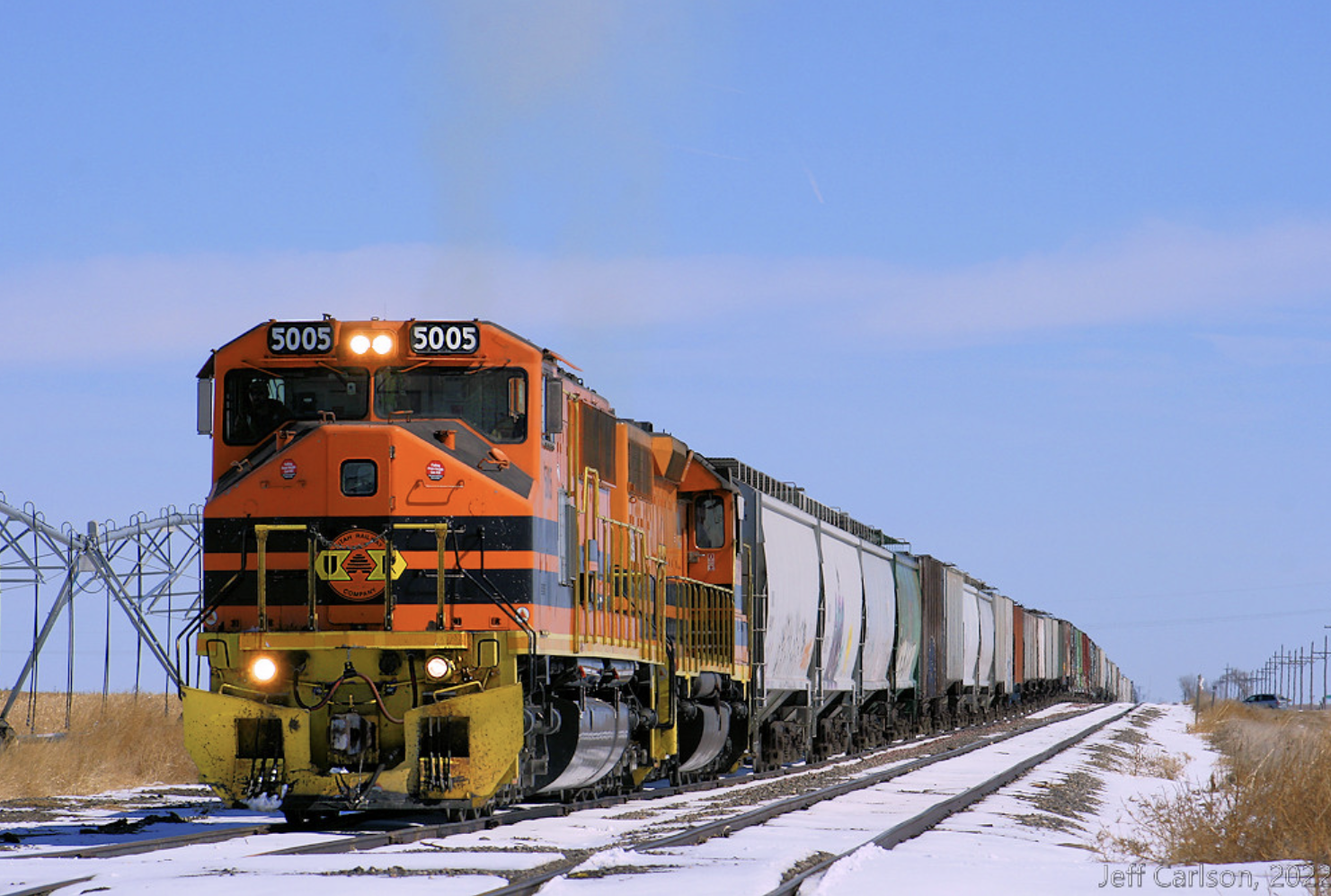

Kyle 5005 (ex-Utah) waits for crew at Seiden, Kansas on 12 March 2022

Jeff Carlson photo

Formatted by: R.Craig

New: 1 June 2023


5000C

MK5000C / MK50-3

Roster
Your Digital Image Here?
New: 1 June 2023 A MK5000C quartet at Wildcat Mine near Helper Utah in May 2004 (Joseph Blackwell photo)
-- Formatted by: R. Craig
MK Serial # (Date) Phase MK5000C Road # MK50-3 Road # Date Reblt by

Boise Locomotive

Notes
3092-01 (8-94) Ph I SP 501 Utah 50-1 2003 --
3092-02 (8/94) Ph I SP 502 Utah 5002 2003 To Kyle RR 5002
3092-03 (8/94) Ph I SP 503 Utah 5003 2004 To Kyle RR 5003
0194-01 (8/95) Ph II MPEX 9901 Utah 5004 2003 --
0194-02 (8/95) Ph II MPEX 9902 Utah 5005 6/2003 First MK50-3 and only one to wear parent G&W's colors; to Kyle RR 5005
0194-03 (8/95) Ph II MPEX 9903 Utah 5006 7/2003 To Kyle RR 5006
Source: Utah Railway (via Brock Paine) with updates from: Ryan Ballard, R. Craig, Larry D. Dilts, Tristan Garrett, Robert R. Harmon, Michael Richmond, Kevin Sadowski, Steve Seguine, Gary Sharp, and Bob Van Derveer. Also Extra 2200 South Newsletter, Utah Rails (Internet), and Diesel Era magazine (May/June 1994 by Robert Harmen).

Use this link for a comprehensive roster of Utah Railway
