Tractive Power Corporation

Locomotives


New: 1 January 2026

Format: R. Craig
With virtually zero fanfare, Tractive Power Corporation entered the locomotive marketplace late in 2013. It rode in on a three-axle surplus truck powered by a low-emissions Caterpillar 375-hp C9.3 diesel engine. The platform was a cut-down frame from a retired SD40-2.

In-spite of sluggish sales during the early years, the locomotive building newcomer has consistently saught to develop a niche in the industrial sector. Its business strategy has centered on using surplus reconditioned trucks and off-the-shelf components married to Tier 3 or 4 EPA-compliant diesel power plants.

In pursuit of that objective, FWDX (the Canadian builder's reporting mark) now offers rail operators four different models, two of which ride on a three-axle truck and one utilizing a pair of conventional B-B trucks. The four-axle TP90 model delivers 90,000 lbs of tractive force, while the three-axle versions TP56 and TP70 are rated at a respectful 56,000 and 70,000 lbs.

The builder's latest catalog offering is a six-axle heavy-duty TP130 version (a 130,000 lb tractive force) that has generated some initial interest with large industrial bulk processing companies; recent orders are for two of the dual-engine model.

TPC's future success will be determined by their locomotives' every-day performance in the field, along with the ability to deliver on a pledge of a lower first cost, fuel saving reduction, and ease of maintenance while still achieving EPA compliance.

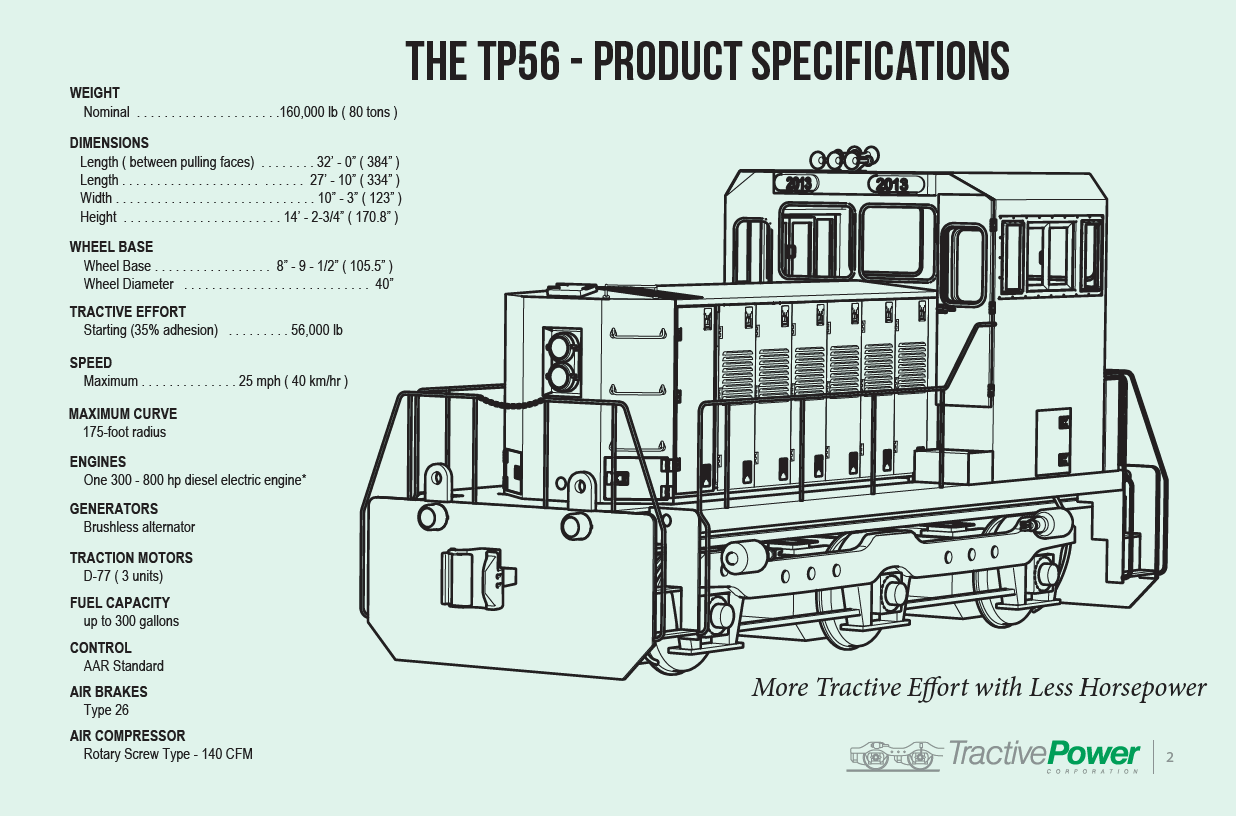

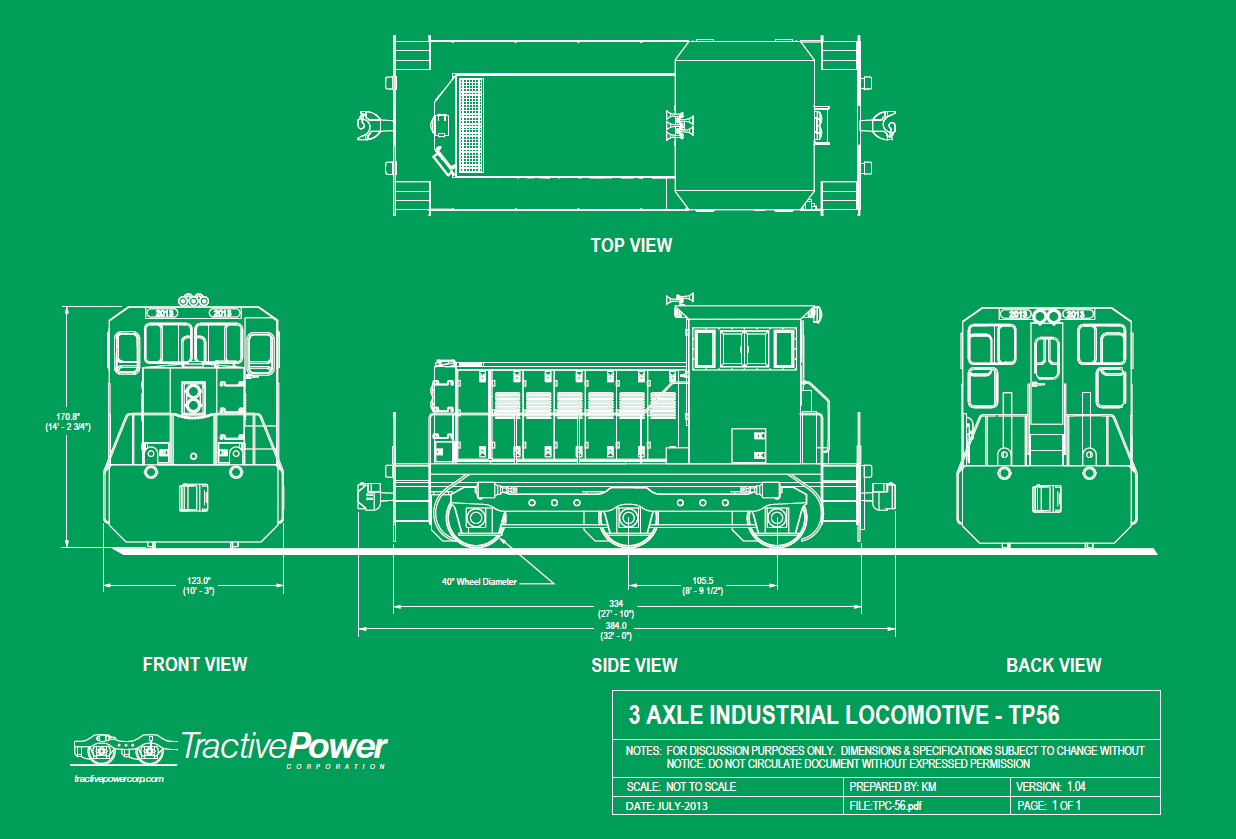

TP56 Specifications
  • Horsepower -- 400
  • Axles - Three
  • Weight - 160,000 lbs.
  • Length (between pulling faces) -- 33"
  • Wheelbase -- 13'-7"
  • Speed -- 25 mph
  • Traction Motors -- D77
  • Turning radius (min.) -- 30 degrees
  • Fuel capacity -- 300 gallons or larger
Dustin Faust photo
TP70 Specifications
  • Horsepower -- 475
  • Axles - Three
  • Weight - 200,000 lbs.
  • Length (between pulling faces) -- 33'-8"
  • Wheelbase -- 13'-7"
  • Speed -- 25 mph
  • Traction Motors -- D77
  • Turning radius (min.) -- 30 degrees
  • Fuel capacity -- 300 gallons or larger

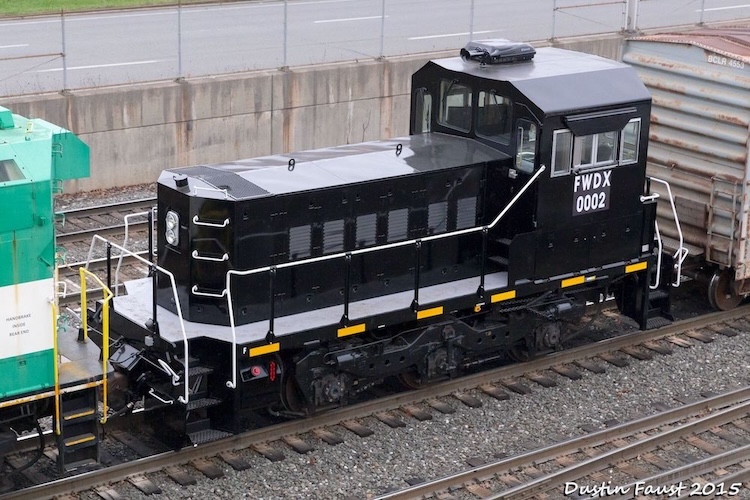

Dustin Faust photo
TP90 Specifications
  • Horsepower -- 513
  • Axles - Four (B-B)
  • Weight - 260,000 lbs.
  • Length (between pulling faces) -- 44'-5"
  • Wheelbase -- 8'
  • Speed -- 40 mph
  • Traction Motors -- D77 (& D78)
  • Turning radius (min.) -- 30 degrees
  • Fuel capacity -- 300 gallons or larger

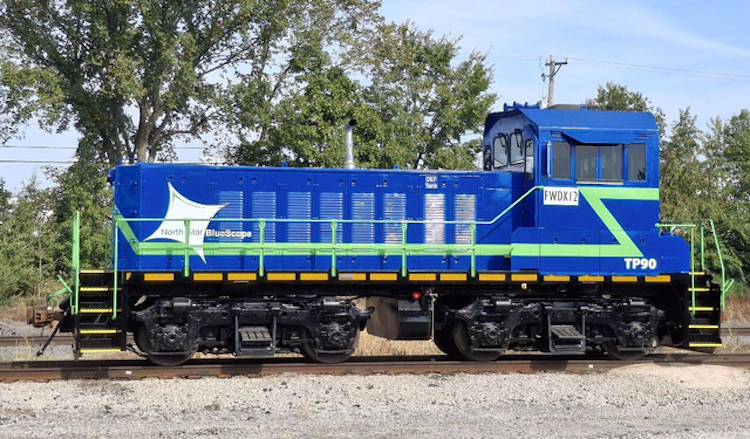

Paul Hunnell photo

FWDX No. Model Built As Date Notes
TP56
5601 TP56 Parish & Helmbecker #5601 12/2013 Tier 3
003 TP56 Curry rauk E/20216 Tier 4; possibly sold to Gerdau Steel
005 TP56 West Rock #? X/2020 --
010 TP56 West Rock #? -- --
TP70
002 TP70 FWDX 1/2015 Demonstrator -- This black unit is known to have spent time on multiple rail properrties, including Vancouver Wharves, Stelco, Western Milling, and probably others.
007 TP70 United Cooperative #? X/2023 --
TP90
004 TP90 American Iron & Metal #1936 2 or 3/2020 Tier 4
006 TP90 Richardson International 8/2022 Initial order
010 TP90 Richardson International 8/2024 Second order
012 TP90 NorthStar BlueScope #1701 12/2025 --
TP130
?? TP130 Marquis Energy #? -- On order
?? TP130 Wolverine Terminal #? -- On order
Reference sources:
  • Flickr
  • Rail Pictures.CA
  • Train Orders
  • TDS

    Information also drawn from locomotive data bulletin board posts from: Stephen Host, Bruce Mercer & Dustin Faust
