General Electric's 80-Ton Center Cab

Eastman Kodak GE 80-ton #6 at Rochester, New York on 28 April 1972. (R. Craig photo)


GE's 80-ton locomotives were initially produced for large industrial users, such as steel mill and foundries, but it was not long afterward that other rail users showed interest in the heavier locomotive . . . the U.S. Government among them. The U.S. Military would soon become the single biggest buyer of small locomotives. From mid-1940 to the end of World War II, the U.S. War Department purchased seventy new 80-Ton locomotives from GE. The military added more than twice that number of 80-Tonners to its inventory during the Korean War. The assumption here is that as newer weapon systems grew bigger and heavier, more large l ocomotives were needed to haul them.

The end of hostilities in 1953 resulted in many of the 65/80-tonners being placed in storage, and later made available to common carriers and industrials through public auction. Although they swapped their military garb for more colorful attire, many of the 80-ton center cabs are still in service across the U.S., or rest proudly in museums.

During the locomotive's long production run, the 80-tonner featured five distinctly different car-body styles. Here are a few tips to help distinguish a GE 80-tonner from a 65-tonner.

In addition to the above 80-ton phases, there was one other 80-ton version which received very little notereity; it was called the "Super 88" and only four were built. Driven by two 470-hp diesel engines; it carried twice as much muscle as a conventional 80-tonner.


Spotting Features of 80-Ton Center Cabs

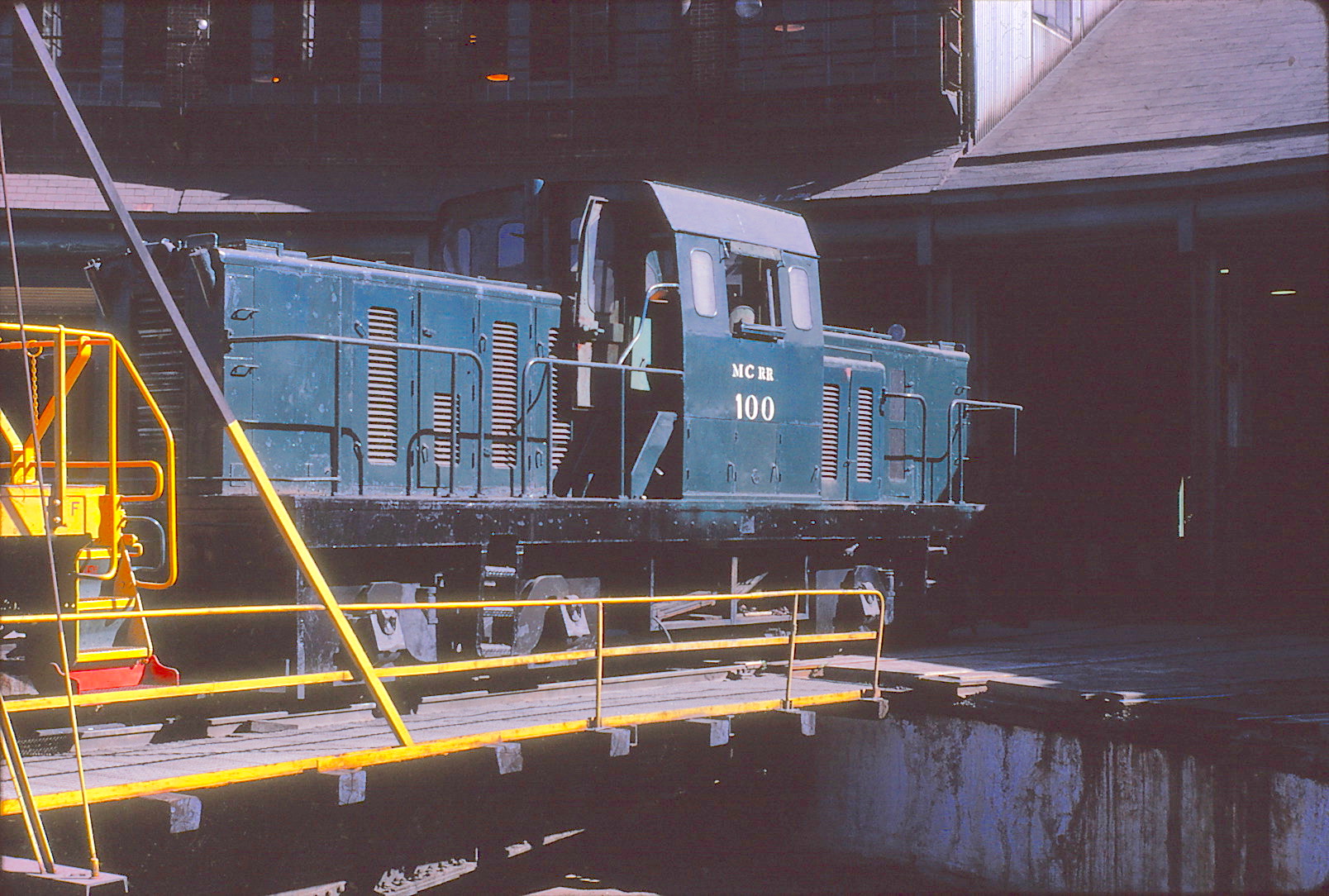

Monongahela Connecting #100

Pittsburgh, Pennsylvania (31 May 1969)

Ray Sabo photo **

Dow Chemical #88

Saginaw, Michigan (September 1969)

Harry L. Juday photo **

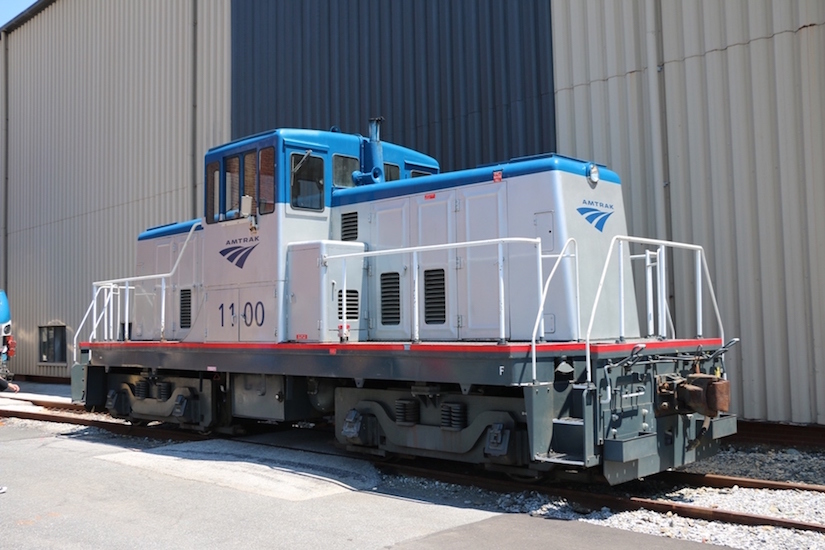

Amtrak #1100

Wilmington, Delaware (June 2016)

Dan Howard photo

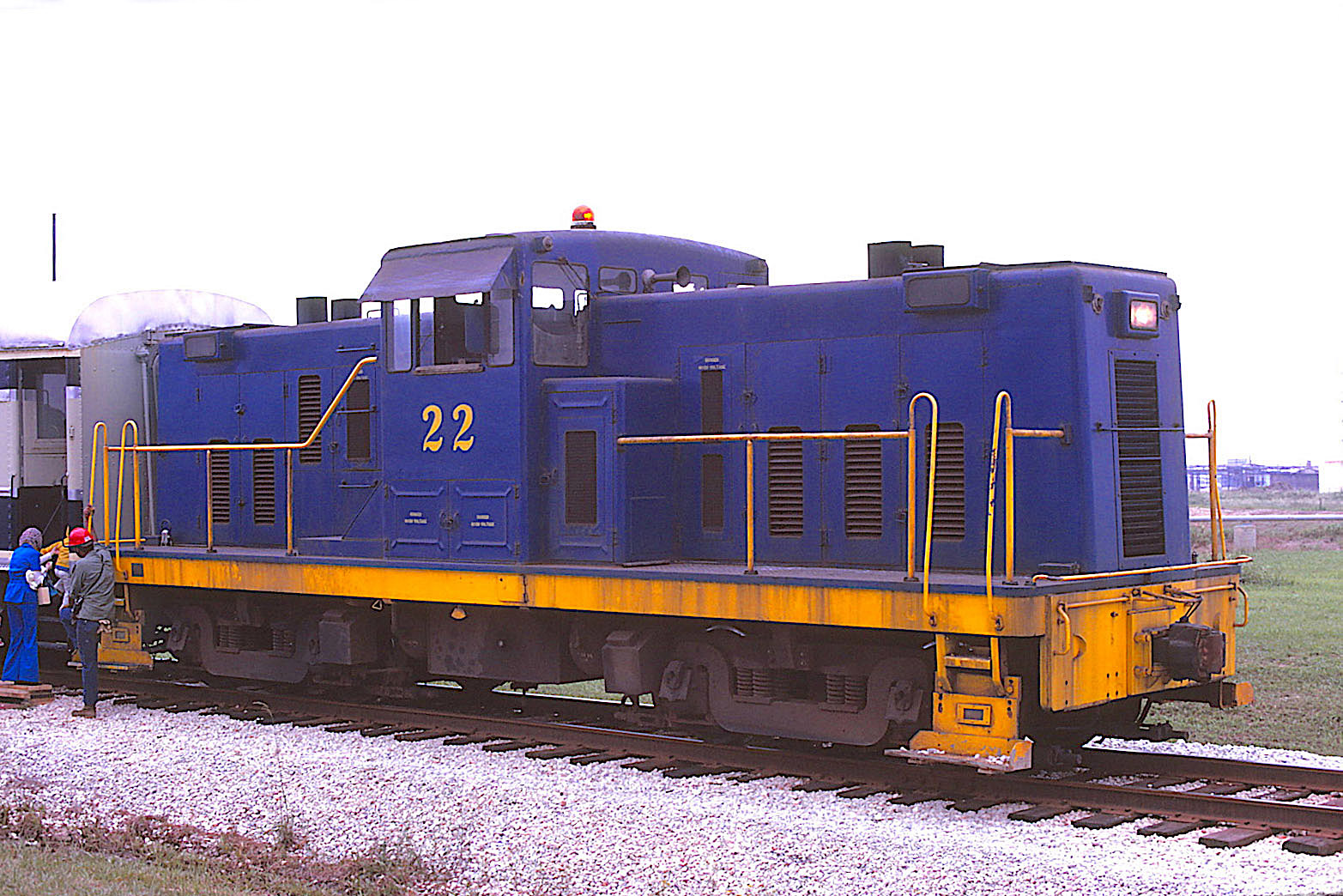

Diamond Shamrock #22

Deer Park, Texas (5 May 1973)

George C. Werner photo **

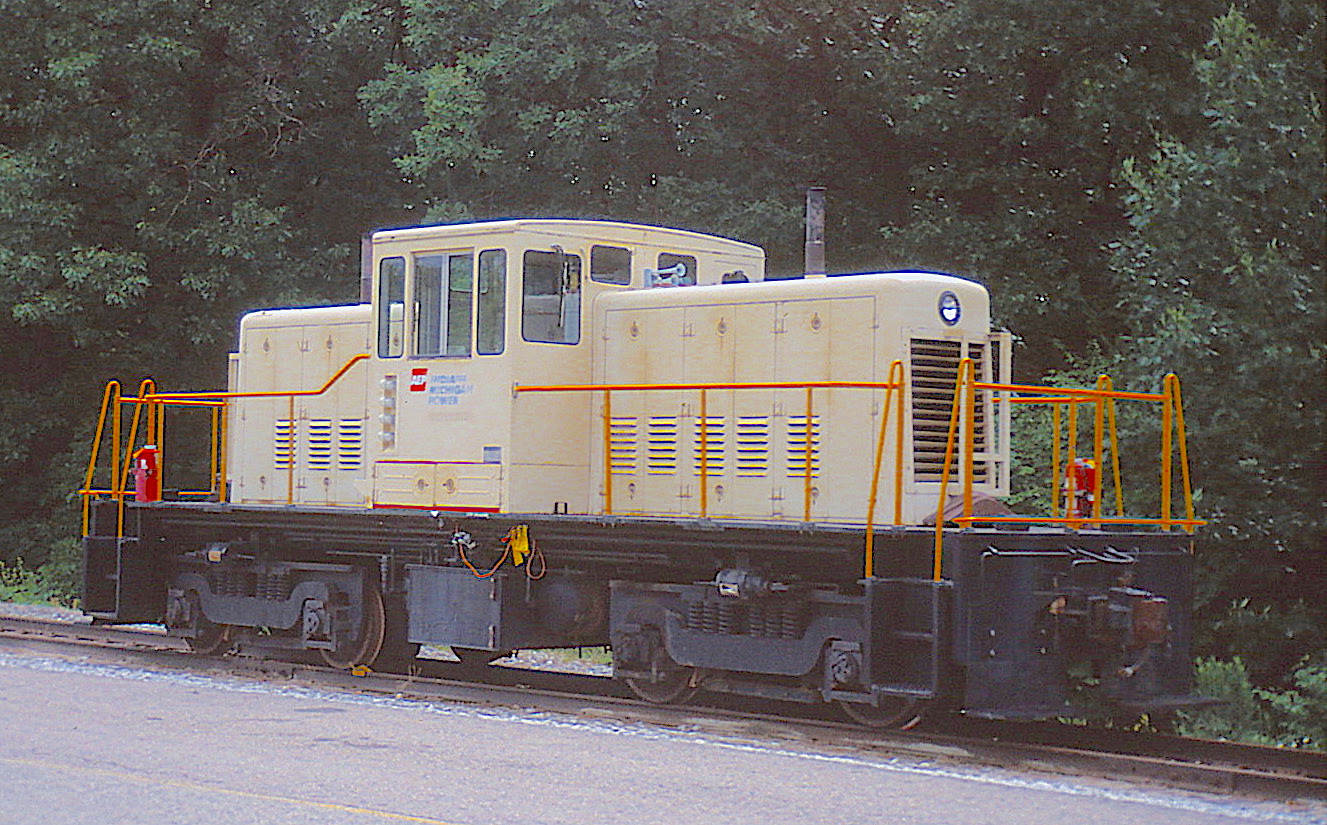

American Energy

Location: Unknown (July 1989)

Ray Sabo **

Temporary Placeholder

Seeking Actual photo (4 January 2020)

xxxxxx photo **

First 80-Tonners (Introduced in 1936)
  1. Tall angular cab
  2. Shutters at front of hoods
  3. Two sand filler pipes protrude upward (at a angle) from front of hoods
  4. No end platforms
  5. Handrails protrude from front of long hood
Blank
  1. Blank
  2. Blank
  3. Blank
  4. Blank
  5. Blank
Elongated 80-Tonner (Introduced in 1941)
  1. Elongated carbody
  2. Shutters at front of hoods
  3. Five hood doors ahead of steps
  4. End platforms
  5. Trucks with four coiled springs
Blank
  1. Blank
  2. Blank
  3. Blank
  4. Blank
  5. Blank
  6. Blank
Most Common 80-Tonner (Introduced in 1948)
  1. Resembles 65-Tonner
  2. Thick Frame (1-1/2" approximate deck plate added)
  3. No Shutters at front of hoods
  4. Air compressor box on running board in front of cab
  5. Three hood doors ahead of steps
  6. Large "front porch"
  7. Trucks with four coiled springs (sometimes six)
Blank
  1. Blank
  2. Blank
  3. Blank
  4. Blank
Super 88 (Introduced in 1957
  1. Resembles a 45-ton "drop cab" at first glance
  2. Two exhaust stacks on each hood
  3. Large vertical air compressor box on walkway
  4. No End platform
Blank
  1. Blank
  2. Blank
  3. Blank
  4. Blank
  5. Blank
Narrow Hood 80-Tonner (Introduced in 1958)
  1. Tall narrow hoods with radiator shutter
  2. Squarish cab with small windows above hoods
  3. Edge lip on roof (sometimes)
  4. End platform
  5. Engine exhaust pipe moved well forward on hood
  6. Trucks with six coiled springs
Blank
  1. Blank
  2. Blank
  3. Blank
  4. Blank
Hi-Visibility Cab 80-Tonner (Introduced in 1976)
  1. Slightly angular cab with large front and read window areas
  2. Tall narrow hoods with dual headlights
  3. Recessed radiator shutter in hoods
  4. Large end platforms
  5. Engine exhaust pipe in front of cab
  6. Frame skirts on early version


Notes and Reference sources:
  • Critters, Dinkys & Center Cabs by Jay Reed
  • The Second Diesel Spotters Guide by Jerry A. Pinkepank
  • Locomotive Encyclopedia (1956) by Simons-Boardman

** R. Craig photo collection
