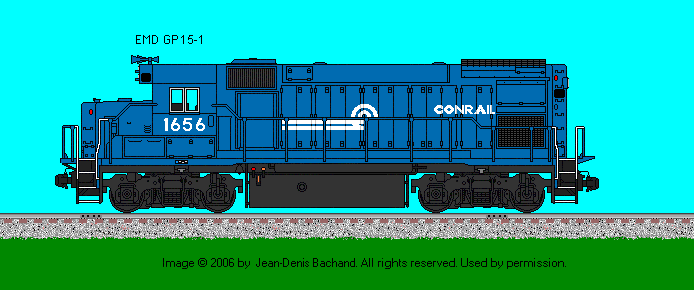

EMD GP15 |
 |
| Data Sheet Information Compiled by: JEAN-DENIS BACHAND |
| New: 9 June 2006 |
Artwork by: Jean-Denis Bachand |
| - |
| Engine Builder: EMD |
Engine: 645 12 cylinder |
| Bore & Stroke |
8.5" X 10" |
| RPM (Maximum / Minimum) |
800 / 275 |
| Main Generator: GM - D32 |
Horsepower: 1500 |
| Gear Ratio: 62:15 |
Speed: 65 mph |
| Trucks: 4-Wheel |
Configuration: B-B |
| Traction Motor Blowers: Delco Electric Drive (4) |
Model: GM |
| Weight: 240,000 lbs |
Traction Motors: GM - D77 (Four) |
| Tractive Effort (starting) 61,000 lbs @25% |
Tractive Effort (continuous): 48,000 lbs @ 9.3 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: Delco 64-72 |
Alternator: GM D14 |
| Air Brake: Westinghouse |
Model: 24RL |
| Compressor: Gardner-Denver |
Model: WBO |
| Quantity Built: 310
|
Dates: 6/1976 to 3/1982 |
| - |
- |
| Exterior Dimensions
| GP15 |
| Total Length |
54'-11" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
9'-00" |
| Height to Top Engine Hood |
14'-11" |
| Height to Top Cab |
15'-02" |
| Cab Width |
10'-04.5" |
| Engine Hood Width |
9'-10" |
| Top of Walkway |
10'-09" |
| Walkway Width |
3'-08" |
| Center Bolster |
29'-00" |
| Center Front Truck to Front Pilot |
1'-06" |
| Center Rear Tucrk to Rear Pilot |
1'-06" |
| Distance between Truck Centers |
41'-00" |
| Minimum Turning Radious |
49 degrees |
| -
| - |
| Fuel Oil: 2400
| Lubricating Oil: 240 |
| Engine Cooling Water: 230
| Sand Capacity: 18 cu. ft. |
| Options: Vapor Clarkson Boiler #4625 |
| - |
